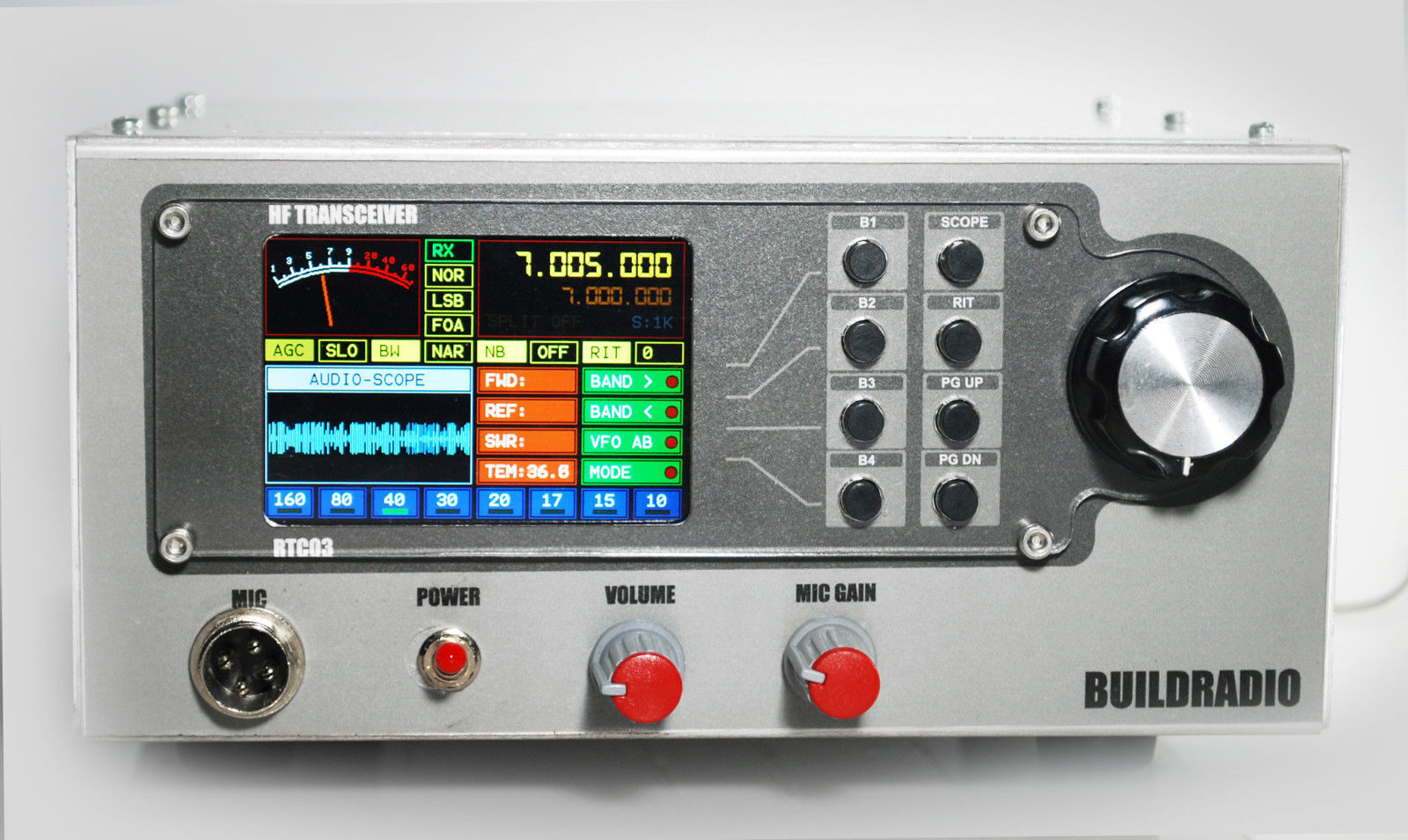

RTC03 HF Transceiver Controller with Si5351 Freq Synthesizer VFO/BFO + Enclosure
This listing is only the Controller and Enclosure, you still need to add Exciter, Power Amplifier, LPF/BPF to do communication,
RTC03 is the newest version of radio transceiver controller (RTC) Jalapindai/Homebrewpartner. This RTC version used Si5351 as frequency synthesizer and used 2 of 3 output on the chips. SDR mode with 4x VFO out vs frequency display also supported covering all HF band (4-120MHz out covering 1-30MHz HF band ). CB channel (require band setting) also supported by this module. Beside VFO out, this module given BFO frequency according to IF and SSB offset setting. Onboard button and Rotary Encoder made this module easy to applied on to your existing exciter such us BITX, Ararinha and other, heterodyne or direct conversion method.
Hardware feature:
*. HF All band controller
*. BFO oscillator
*. USB/LSB/AM switch control
*. IF bandwith control
*. AGC control
*. NB control
*. VFO A/B
*. Microcontroller ATMega128
*. 3.2 Inch TFT (480×320 pixel) LCD 16bit parallel mode
*. SI5351A PLL synthesizer up to 200MHz, with 2 independent output (LO and BFO)
*. 8 band switch control using 74HC595 8 bit shift register and ULN28083 current driver
*. 4 bit LSB/USB/CW/AM digital I/O control pinout (active high)
*. 3 bit AGC/BW/NB digital I/O control pinout (active high)
*. 5 x 10 bit ADC channel (Smeter, FWD, REF, Audio and Temperature) analog input pinout
*. 1 bit RX/TX digital input pin for TRX status monitor
*. LM386 mini audio amplifier for audioscope
*. 8 push button menu
*. Rotary Encoder with push button
firmware feature v1.0
*. RX/TX indicator display
*. Dual independent band VFO selection (VFO A-B)
*. Rotary dial with 1-10-100-1K-10K-100K step option
*. Split operation (cross band)
*. 40 memory channel
*. Analog S-meter display
*. Audioscope display with disable option
*. RIT control
*. AGC/BW/NB control
*. Run Time IF value setting
*. Run Time BFO offset value setting
*. Run Time SI5351 correction/calibration value setting
*. 8 Programmable Band selector/control/setting (you may setup your own band)
*. Factory reset
Standard band coverage (programmable)
160m = 1.800 MHz – 1.999 MHz
80m = 3.500 MHz – 3.999 MHz
40m = 6.900 MHz – 7.249 MHz
30m = 10.100 MHz – 10.149 MHz
20m = 14.000 MHz – 14.349 MHz
17m = 18.068 MHz – 18.168 MHz
15m = 21.000 MHz – 21.449 MHz
10m = 28.000 MHz – 29.699 MHz
You may adjust the band min and max frequency later (HF band)
You can ask me to replace 12m instead 160m so the band list is 80m, 40m, 30m, 20m, 17m, 15m, 12m, 10m.
Aluminum enclosure consist of
*. Aluminum box (95x200x200mm)
*. Acrylic Panel
*. Front Panel sticker
*. 1 x 2pin CB connector (for power)
*. 1 x 4pin CB connector (for mic and PTT)
*. 2 x potensiometer knob
*. 1 x rotary dial knob
*. 1 x toggle switch for power button
*. 1 x fuse holder
*. 1 x aluminum heatsink
*. 1 x PL-259 female connector
Price: US $175.00
