Introduction:

This is an Arduino-based rotator interface that interfaces a computer to a rotator or rotator controller, emulating the Yaesu GS-232A/B and Easycom protocols which are supported by a myriad of logging, contest, and control programs. It can be easily interfaced with commercial rotator control units. With the addition of a proper capacity power supply and several interface components such as relays, this unit could also serve as a total replacement for a rotator control unit or serve as the basis for a 100% homebrew rotation system. Several azimuth and elevation position sensors including potentiometers, rotary encoders, and I2C devices are supported. The code is very flexible, modular, and easy to read allowing intermediate and advanced experimenters and builders to customize it.



slide-singlerot2

slide-singlerot3

slide-multirot1_t

slide-singlerot4

wiki-rot30-1

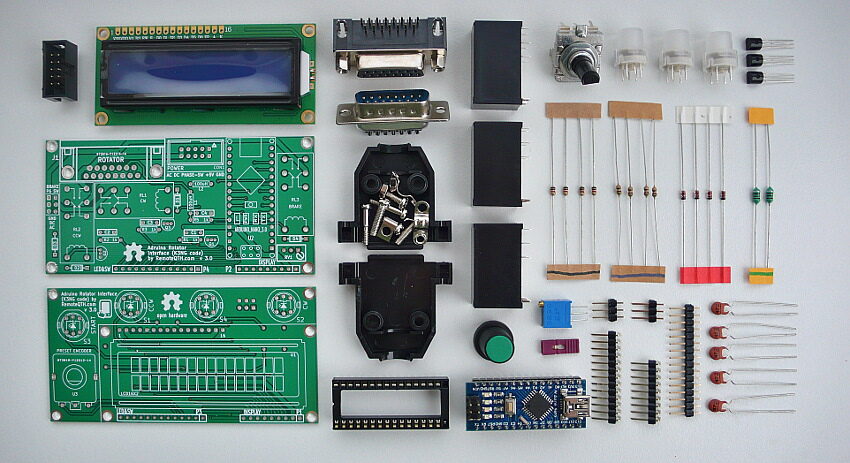

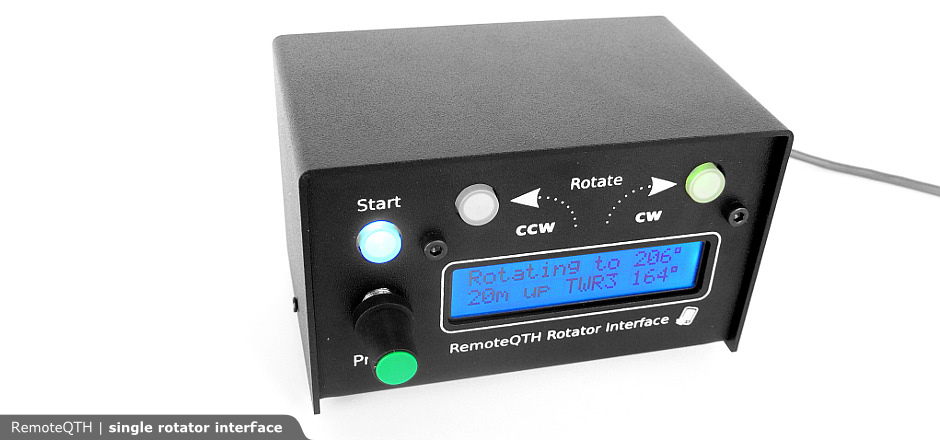

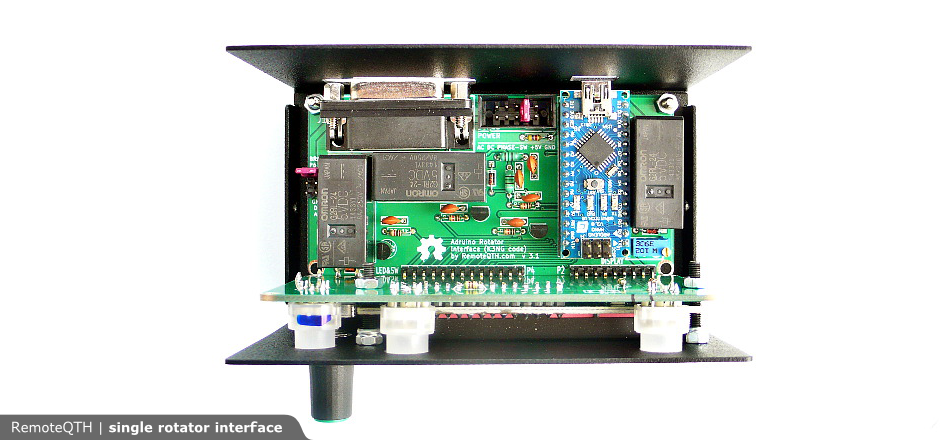

The rotator unit, based on arduino (code by K3NG) contains:

  • LCD.
  • Lighting button (CW, CCW, Start).
  • Preset encoder.
  • Three relay (CW, CCW and Brake).
  • Arduino nano module.
  • Two PCB shield.

Main functions:

  • Operate independently, but can be controlled from a PC
  • Ready for AC and DC rotators.
  • Analog input.
  • Azimuth only.
  • 5V power voltage.
  • Size 5 x 10 x 5 cm (2 x 4 x 2 inch).
Arduino rotator interface unit
