1 Watt Professional Transmitter FM Radio Station. Power adjustable from 0.1W to 1.2W. PC Control Function.
Technical parameters
1 Power Supply DC12V
2 Current 3 76 ~ 108MHz frequency range
4 Frequency stability ± 10PPM
Step 5 Frequency 100KHz
6 Environmental Operating temperature -10 ℃ ~ 50 ℃
7 Output impedance 50Ω
8 RF output power range 0W ~ 1W
9 harmonics, spurious radiation ≤-50dB
10 Audio Distortion ≤ 0.3%
11 Frequency Response 50Hz ~ 15000Hz
12 separation ≥ 40 dB
13 input level ≤ -15 dBV
14 frequency deviation ± 75KHZ
15 SNR ≥ 60 dB
16 Dimension 140 mm (L) * 105 mm (W) * 43 mm (H)
(Excluding protrusions)
Weight about 550 grams 17
Package include :

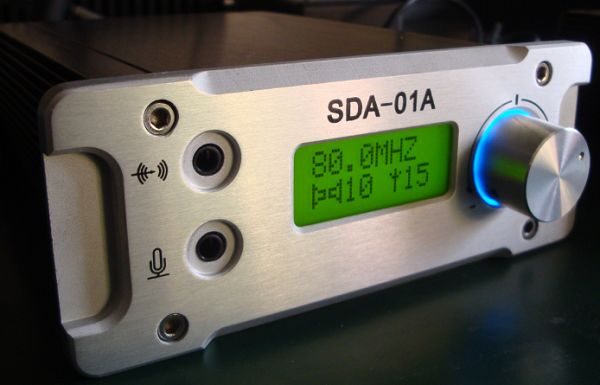

1 * SDA-01A PC Control FM transmitter
1 * TNC short mini rubber antenna
1 * Power Adapter
1 * Audio Cable
Price: $199 USD (159 USD Shipping:40 USD)
Also SDA-15B (15 W) version is available. ($320 USD)
