Full kits will be available soon – ready populated SMD boards, coax interconnect cables, plastic parts, LCD, heat sink and all components for the metal chassis/box Price range for the base version $450 – $550
QRP/QRO output 5 – 50W
All mode shortwave operation – coverage of the 9 HAM HF bands (160m optional)
High dynamic range receiver design including high IP3 monolithic IC in the front end and H-mode first mixer
Low phase noise first LO – SI570 chip
Full/semi QSK on CW; VOX operation on SSB.
Down conversion superhet topology with 9MHz IF
Custom made crystal filters for SSB and CW and variable crystal 4 pole filter – Johnson type

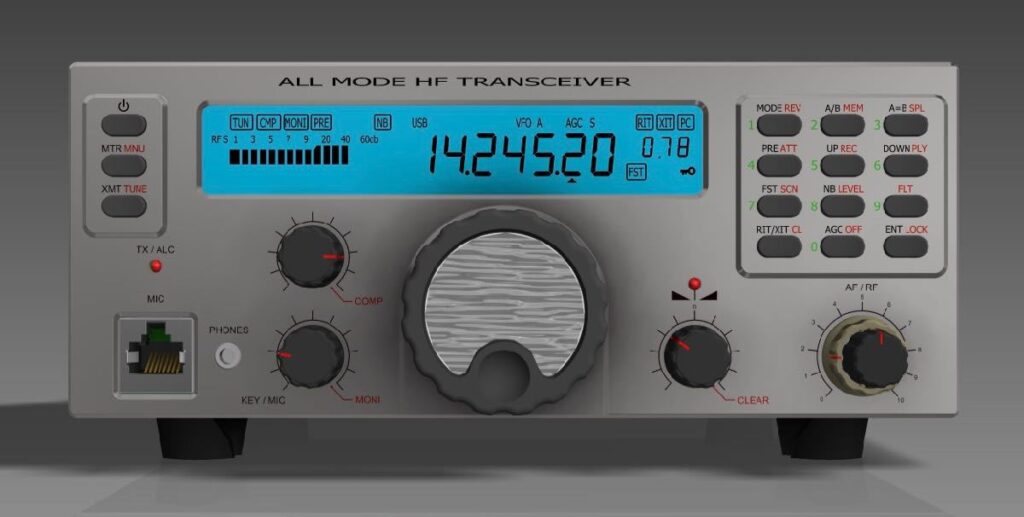

Stylish and professional look
Compact and lightweight body
Multicolor FSTN LCD
Silent operation with no clicking relays inside
Modular construction – Mother board serves as a “chassis” also fits all the external connectors, daughter boards, inter-connections and acts as a cable harness.
Optional modules – NB, AF, ATU, XVRTER
PC control via CAT protocol; USB FTDI chip
Memory morse code keyer (Curtis A, CMOS B)
Contest and DXpedition conveniences
