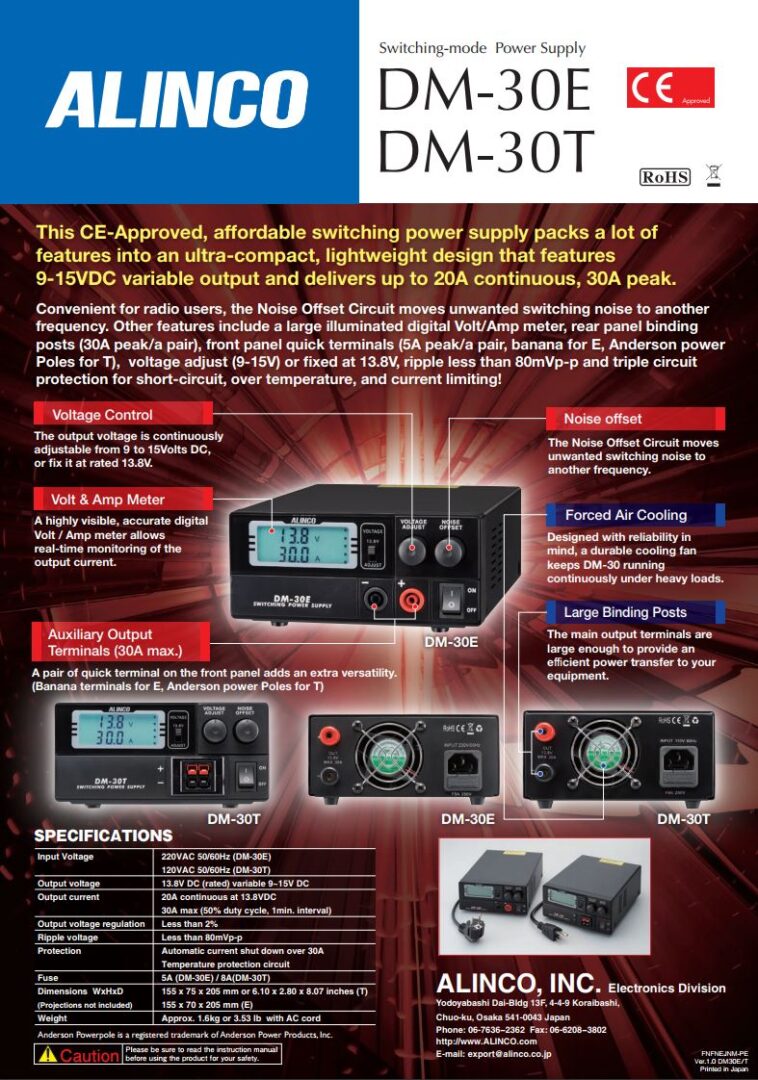

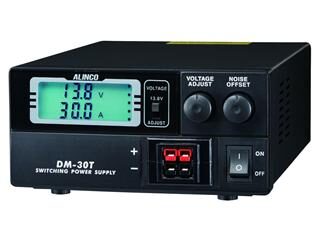

Alinco’s latest Digital Power Supply DM-30 , is an affordable switching power supply packs a lot of features including Anderson Powerpole® connectors, an ultra-compact, lightweight design that supports 9-15VDC variable output and delivers up to 30A peak power to 2-Way Radio communication products.
Convenient for radio users, the Noise Offset Circuit moves unwanted switching noise to another frequency. Other features include a large illuminated digital Volt/Amp meter, rear panel binding posts (30A peak/a pair), front panel quick terminals (5A peak/a pair, Anderson Powerpoles® connectors, voltage adjust (9-15V) or fixed at 13.8V, ripple less than 80mVp-p and triple circuit protection for short-circuit, over temperature, and current limiting!
The output voltage is continuously adjustable from 9 to 15Volts DC, or fix it at rated 13.8V.
A highly visible, accurate digital Volt / Amp meter allows real-time monitoring of the output current.
A pair of Anderson Powerpoles connectors on the front panel quick plug-in/out as well as adds an extra versatility.
The Noise Offset Circuit moves unwanted switching noise to another frequency.
Designed with reliability in mind, a durable cooling fan keeps DM-30 running continuously under heavy loads.
The Rear main output terminals are large enough to provide an efficient Max 30A power transfer to your equipment.
Input voltage 120VAC 50/60Hz
Output voltage 9 to 15VDC variable
Output current 20A continuous at 13.8VDC
30A max (50% duty cycle, 1min. interval)
Output voltage regulation Less than 2%
Ripple voltage Less than 80mVp-p
Protection Automatic current shut down over 30A
Temperature protection circuit
Dimensions (WxHxD) 6.10 x 2.80 x 8.07 inches (155 x 75 x 205 mm)
