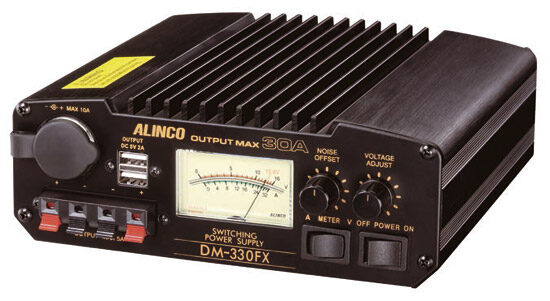

Alinco DM-330FXE & DM-330FXT Communications Grade Switching Power Supply With USB Ports.
This CE-Approved,”Breakthrough” switching power supply packs a lot of features into a compact, lightweight design that features 9-15VDC variable output and delivers up to 25amps, 30 peak. Unlike other “switchers”, it’s electrically quiet. But if you should find noise, don’t worry! The patented Noise Offset Circuit lets you move the switching noise you might find to another frequency. Other features include a large illuminated “instrument-class” Volt/Amp meter, rear panel binding posts (30A peak), front panel cigar outlet (10A), two pairs of snap-in terminals (5A max.) and USB ports (2A max.), front panel voltage adjust, customer-defined output voltage “memory”, ripple less than 50mVp-p and triple circuit protection for short-circuit, over temperature, and current limiting!
Input voltage: AC 230V
Output voltage: DC 5-15V
Output current: 30A (max), 25A (continuous)
Ripple: Less than 15mVp-p at rated load
Size: 190(w) x 69(h) x 81(d) mm
Weight: Approx. 2.5kg (with UK mains chord)
DX-Patrol Converter for OSCAR-100 DX-Patrol Uplink Converter for OSCAR-100 (QO100) Geos. Satellite.
434MHz to 2400MHz Low Cost (~100 EUro) Up convertor with 100mW of RF Power to "QO-100" Satellite.
Source (Link) to DX-Patrol Company
DAIWA CN-901-HP-3 SWR Meter CN-901HP with true peak power readout.
All Daiwa SWR meters can be selected to display average or peak power. The PEP value is found by different charge/discharge constants and therefore is not very...
