KG-SDR is Windows application to demodulate analog signals from IQ signal. You can enjoy receiving radio communications more with supported receivers.
Features of KG-SDR
A user-friendly Windows-based “Software Defined Radio” software for supported receivers.
KG-SDR is FREE SDR software enabling display and control of radio by simple connection to IQ signals.
KG-SDR can control frequency, mode and other parameters of supported radios by using a PC-connection cable.
Demodulate analog radio communications for HF, VHF, and more …!
KG-SDR uses software technology to interface to defined radio that processes the radio signals digitally in the PC (Digital Signal Processing).
KG-SDR decodes typical analog radio communications such as AM, narrow FM, SSB and CW as transmitted in short-wave broadcasts; aviation; navigation; Amateur Radio and more.
(KG-SDR can’t receive wide FM like FM broadcast because of technical specifications of supported radios.)
Simple interface, similar to using a conventional analog radio!

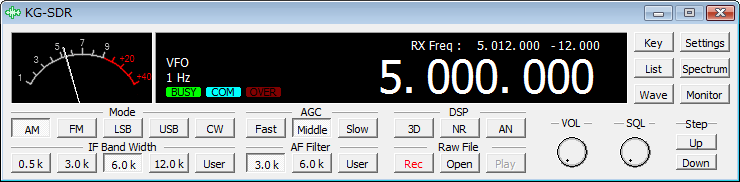

Operation of KG-SDR is straightforward, the interface is like the front panel of a common, conventional receiver.
To tune the frequency, use either a wheel of mouse, arrow keys of keyboard, or clicking on the spectrum display.
Initial setting is very simple also; Select the sound-devices, check the COM port setting of the control-cable, select the model of your radio if supported, adjust the signal input level … and you are ready to play!
User Customization IF and AF filters!
KG-SDR has different preset and user-selectable IF and AF filters.
Noise reduction, 3D, Audio-notch and other popular DSP parameters are also available to enhance your receiving environment.
Band recording, Signal recording, and more convenient features for your receiving pleasure!
KG-SDR allows you to record the whole IQ band-pass range, allowing replay of entire captured spectrum or any single individual signal in WAVE format only when the squelch is open while receiving.
In addition, KG-SDR offers advanced features like unlimited Memory-channels, Selectable 3-level AGC, variable tuning steps, and Monitor (temporary squelch-off). Not too complicated, KG-SDR is a beginner-friendly yet a full- function SDR software!

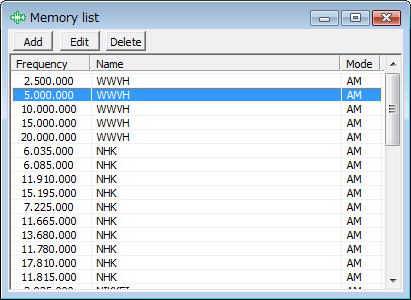

Memory list can easily be edited: add, delete memory frequencies, modes, and name-tags.

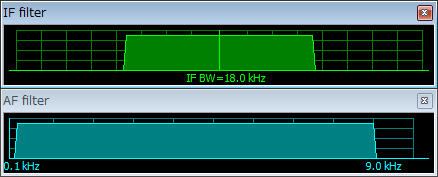

You can easily adjust filter bandwidth and / or cut-off frequencies on graphical displays.
Color-selectable Spectrum display can tune radio frequency by clicking on the display or turning a mouse wheel.
