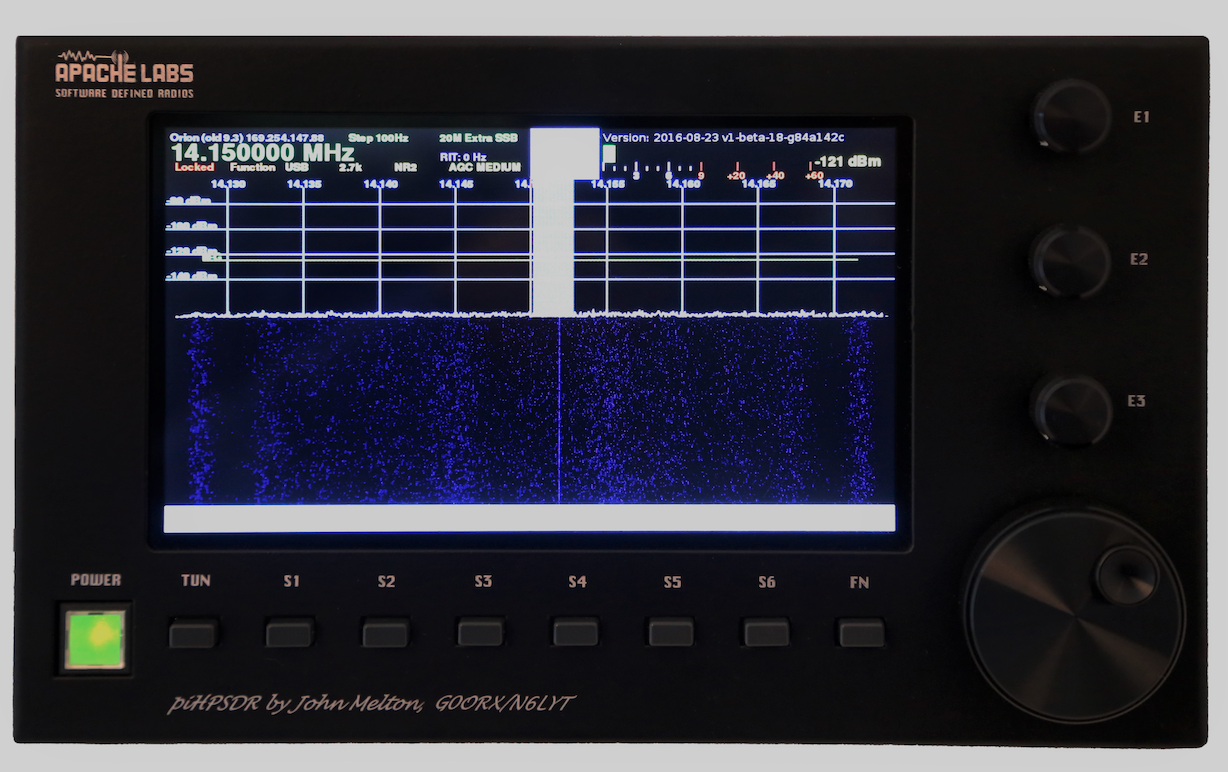

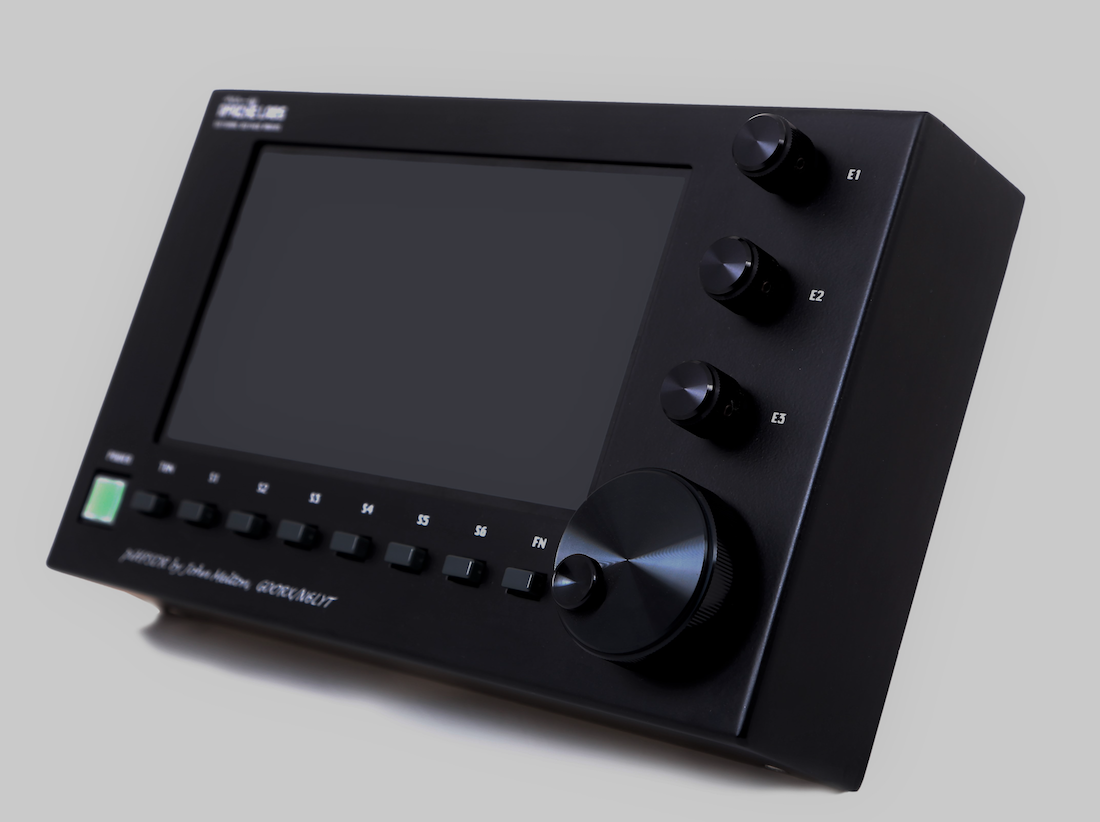

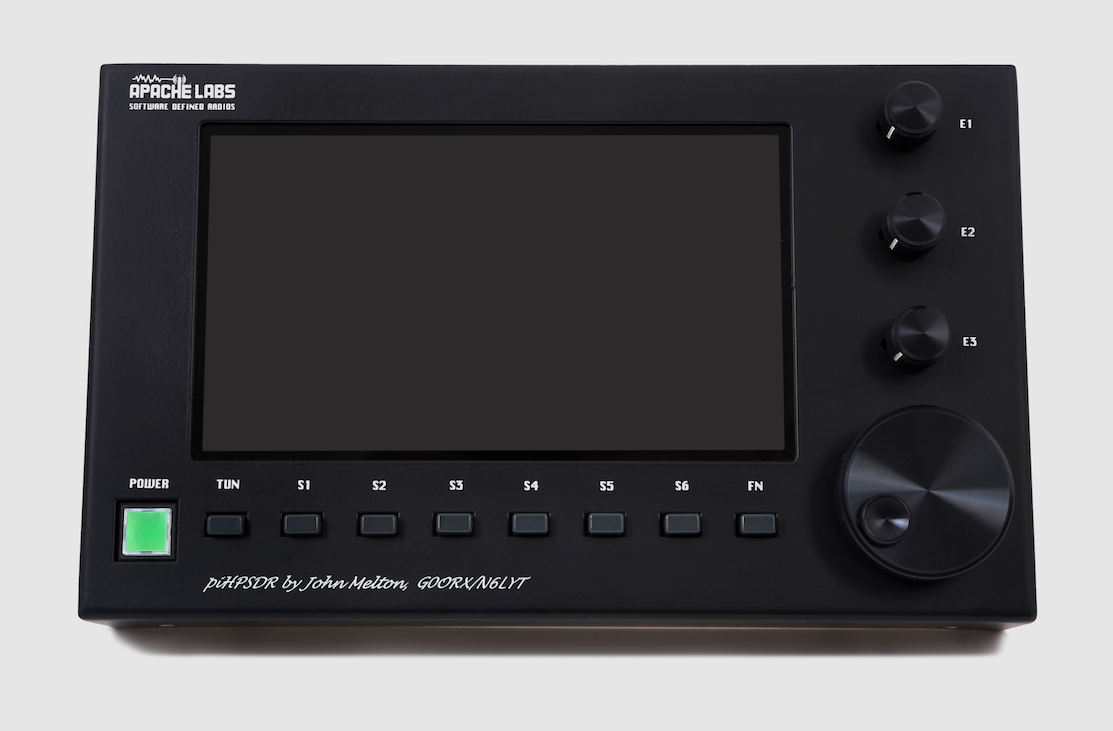

The PiHPSDR Controller is a stand-alone interface for the ANAN/OpenHPSDR Hermes SDRs, it is ideal for mobile applications and for users who prefer physical knobs and buttons, and it eliminates the need for a Computer to run the ANAN/OpenHPSDR Hermes based radio transceivers.
The Fantastic PiHPSDR application is written by John Melton, G0ORX/N6LYT, the application supports all mode transceive capability and uses the award winning WDSP engine written by Dr. Warren Pratt, NR0V for the back end DSP processing.
Dimensions – 250mm W x 150mm H x 50mm D, not including extrusions and folding stand
Supply Voltage – 12-13.8v @ 2.5A
Eight Function Buttons
Three Function Encoder knobs with push Switches
Solid Aluminum Tuning Knob with finger dimple
Four USB Ports and an Ethernet interface
Raspberry Pi 3B
7 inch multi touch screen
16GB Micro SD card with Raspbian and PiHPSDR preinstalled
All Mode Receive and Transmit capability (when used with the ANAN/OpenHPSDR Hermes SDRs)
Supports FreeDV Digital Voice Transmit and Receive
