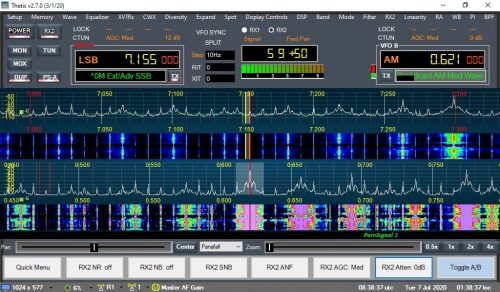

ANDROMEDA integrates all of the elements of an HF software defined radio. The PC, display, DSP and RF elements are all integrated into a single unit giving true standalone operation. The front panel is fully integrated to the THETIS software providing leading edge DSP with “conventional radio” usability. The front panel features a high resolution VFO encoder, six dual encoders for a range of settings and 29 pushbuttons. All the encoders and pushbuttons are programmable allowing the user to re-allocate them to other functions from a menu within THETIS. A 7” touchscreen display is provided for the THETIS PC display. A configurable “softkey” menu button bar at the bottom of the screen can be used to make most of the user settings needed to operate THETIS; others are accessed through setup menus. A set of push buttons below the touchscreen can be used to operate the “softkey” buttons, or could be user reprogrammed to other functions.
This Product comes with an Intel i5 10th Generation CPU, 8GB RAM and 128GB SSD

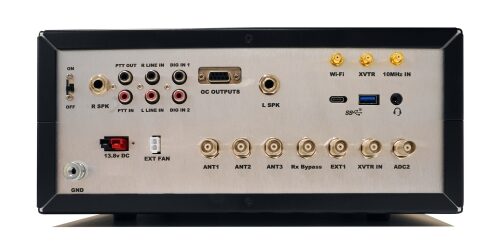

The following Ports are available via an external USB 3.0 Hub provided with the Radio: USB 3.0 x 3, 100/1000 Ethernet, HDMI
* Please Purchase RAM & SSD Upgrade Package in case you so require.
