V2 runs PiHPSDR developed by John Melton, G0ORX,
Christoph van Wüllen, DL1YCF has added several features such as PureSignal, Diversity capability, CW enhancements, MAC OS support & Midi.
PCB design by Kjell Karlsen, LA2NI.

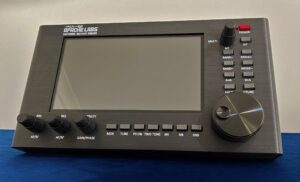

V2 is a perfect companion for the ANANs and are Plug & Play out of the Box!
Features & Specifications:
– Support for two independent receivers each with Panadapter/waterfall
– 7 Inch Capacitive multi touch Display
– Gigabit Ethernet supports Protocol1 and Protocol2 firmwares
– All ANAN/OpenHPSDR hardware supported
– PureSignal Predistortion support
– Diversity reception Support (for dual ADC Radios)
– All Knobs/encoders (except Power Button & Tuning knob) can be assigned functions to suit the user
– Solid Metal Machined Tuning Knob
– Hardware futureproof – SBC can be upgraded in the future
– Linux OS (Raspbian Buster)
– Ports: 1x Gigabit Ethernet, 2x USB 3.0, 2x USB 2.0, HDMI and USB-C ports
– 12-15v DC @ 2.5A
– Dimensions & Weight: H 14.7 CM x W 26.7 CM x D 3.7 CM, Weight 1.2Kgs Approx
Estimate Price: $699.00
For purchase call Apache Labs
