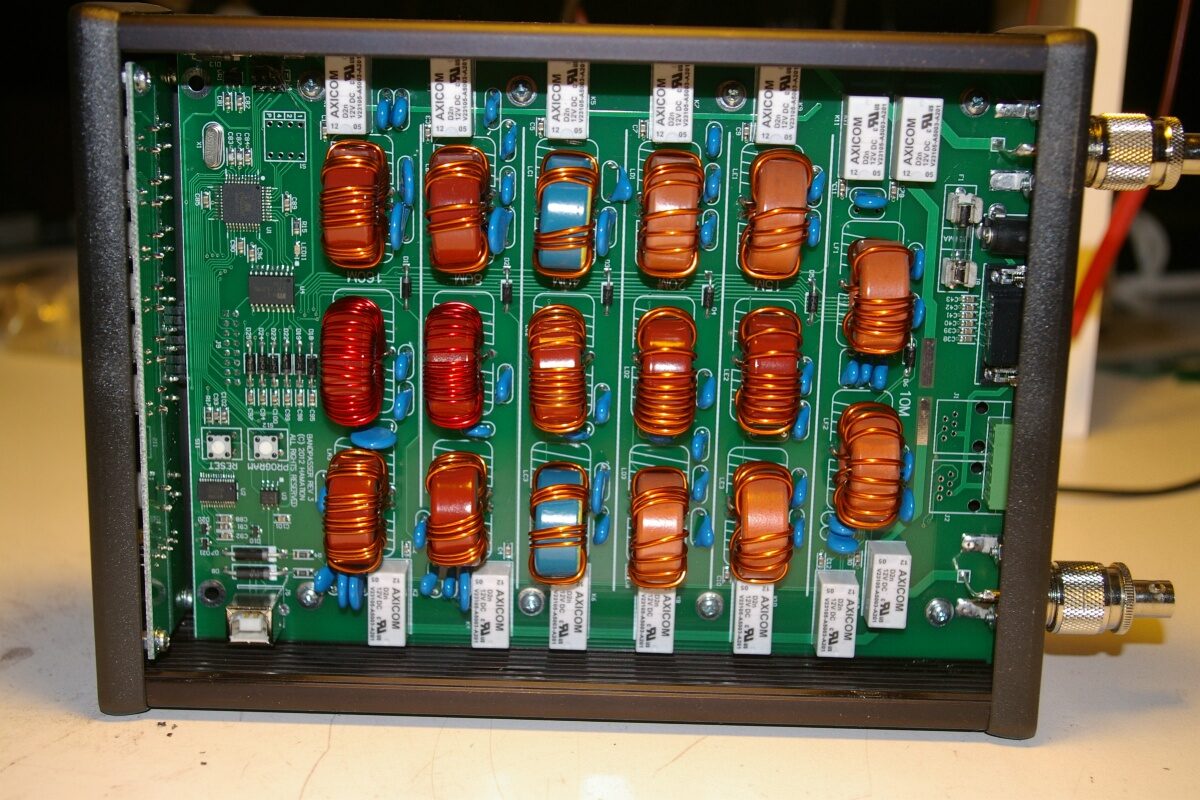

The AS-419 “Bandpasser” contains six high performance bandpass filters in a single compact package and comes standard with filters for 160, 80, 40, 20, 15 and 10 meters. Filters for 160M thru 15M are 3-pole Chebyshev designs which provide over 40db rejection of adjacent bands (excluding WARC bands). Due to the narrow separation between 15M and 10M (25%), the 10M filter is a Cauer high pass design that provides notches on the 15M and 20M bands.
These filters are rated at 200 watts (100w over 2:1 SWR) and can handle 100% duty-cycle modes, such as RTTY, with ease. These filters are designed be used between your radio and amplifier or antenna. They low insertion loss (less than 0.6 db) and low SWR (less than 1.25:1) across an entire band. The filters can be selected via front panel pushbutton switches, via our 4-wire system or remotely by applying +12 for each individual band to the rear panel control connector.
Six bands in one compact unit
200W power rating (Under 2:1 SWR)
SWR less than 1.25 across band
Low insertion loss
High rejection of adjacent bands
Hand tuned for maximum performance
Cost effective filter solution
Anodized aluminum case
Laser engraved panels
The new BandPasser WARC System
The same features as the original BandPasser, but includes 4 WARC filters: 60m, 30m, 17m, and 12m.
Wires in series with your original BandPasser or FilterMax to give you all band coverage from 160 through 10m!
Fully automatic filter selection with our BandMaster band decoder or with Integrated 8-Pak and 4×8-Pak controllers.
Discrete bpf selection with other sourcing band decoders is supported.
AS-419 “BandPasser” 6 band bandpass filter system : $595.00 USD
AS-419W “BandPasser” WARC 4 band bandpass filter system : $525.00 USD
