SK-4000-TC 85-4000 MHz SiteHawk Analyzer.
The pocket-sized SiteHawk Antenna and Cable Analyzer operates from 85 MHz to 4 GHz and features an intuitive interface readily accessible to the first time user and minimizes clicks for an expert using it every day. Substantial internal storage eliminates the need to worry about file storage, holding thousands of traces on the device for future analysis or reporting. With the SiteHawk, it is simple to 1) Determine if there is a problem with your cable and antenna system using the Measure Match function and 2) Locate the source of the problem with the Use Distance to Fault measurement.
- Easy to operate and field ready for first-time, occasional and experienced users.
- FDR (Frequency Domain Reflectometry) measurement method results in a highly reliable assessment of the health of critical components in your system; ultimately providing a “heads-up” before a failure occurs.
- Fault location or DTF mode indicates VSWR or Return Loss levels at each point along the cable and antenna system length.
- Cable Loss function measures insertion loss of the cable system over a given frequency range. }One unit covers the entire 85-4000 MHz range!
- USB communication port for connection to storage device and battery charging.
- Color display is clearly visible in direct sunlight.

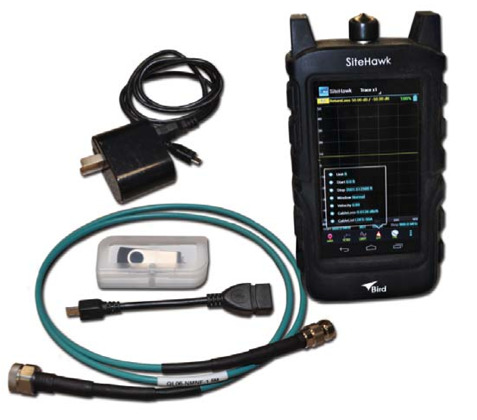

Standard Accessories: AC Adapter (5 Vdc Output), Hard Carrying Case, USB Interface Cable-Power-1 meter long, RF Cable – 1.5 Meter long, Instruction Manual, Soft Carrying Case, USB Drive, USB Interface Cable, 15 cm long, International Adapter
SPECIFICATIONS:
| Item No | SK-4000-TC |
| Item Name | SiteHawk Antenna and Cable Analyzer |
| Frequency Range | 85 to 4000 MHz |
| Frequency Resolution | 1kHz |
| Power Measurement | None |
| Return Loss | 0 dB to -60 dB |
| Test Port | N-type, Female |
| Impedance Ω | 50 ohms |
| Storage Capacity | Thousands of Traces and Setups |
| Immunity to Interfering Signals | +13dBm |
| Maximum Input Signal | +22 dBm |
| Operating Temperature | 14°F to 131°F (–10°C to +55°C) |
| Storage Temperature | –40°F to 176°F (–40°C to +80°C) |
| Battery Charging Temperature | 32°F to 95°F (0°C to +35°C) |
| Humidity | 95±5° max (non-condensing) |
| Altitude | Up to 5000 ft (1500 m) |
| Dimensions | 7.2 x 3.8 x 1.9 (in); 182 x 95 x 46.5 (mm) |
| Weight | 1.98 (lbs) 0.9 (kg) |
APPLICATIONS:
- Suitable for use in Worldwide Cellular and PCS/DCS systems; supporting measurement of CDMA, GSM, and LTE Protocols.
- Other applications include 3G, Broadcast, Government, Tactical Military, Microwave, Paging, Public Safety, Trunking, WLAN, and TETRA
Price: TBD
