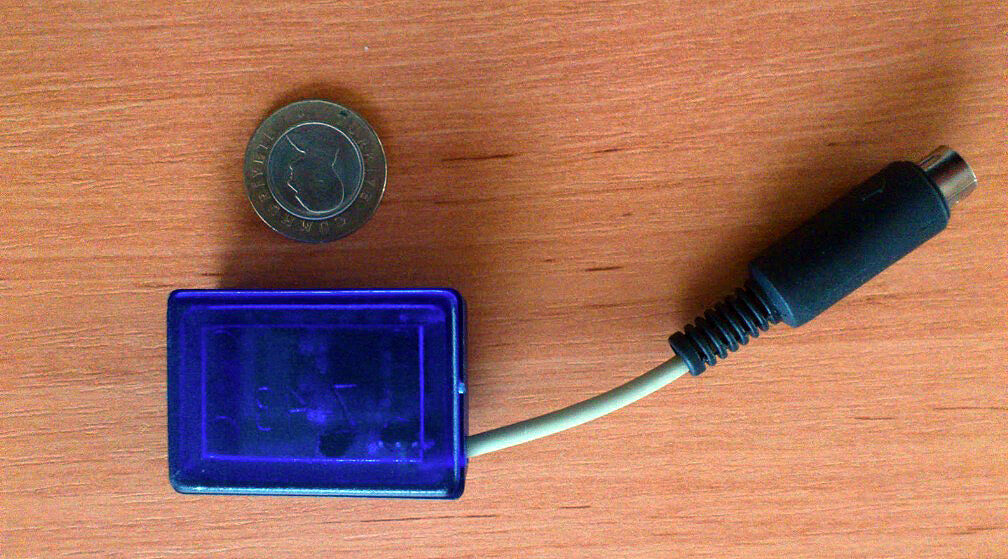

This module is compatible with the YAESU FT-817, FT-857 and FT-897 Transceivers. The wiring is very simple. The Bluetooth module is in the blue transparent box with dimensions of 45x30x15mm. The module can be used in conjunction with a PC (eg SW HRD ) or in conjunction with a device with Android OS (tablet / mobile). Dan YO3GGX developed software for the platform.

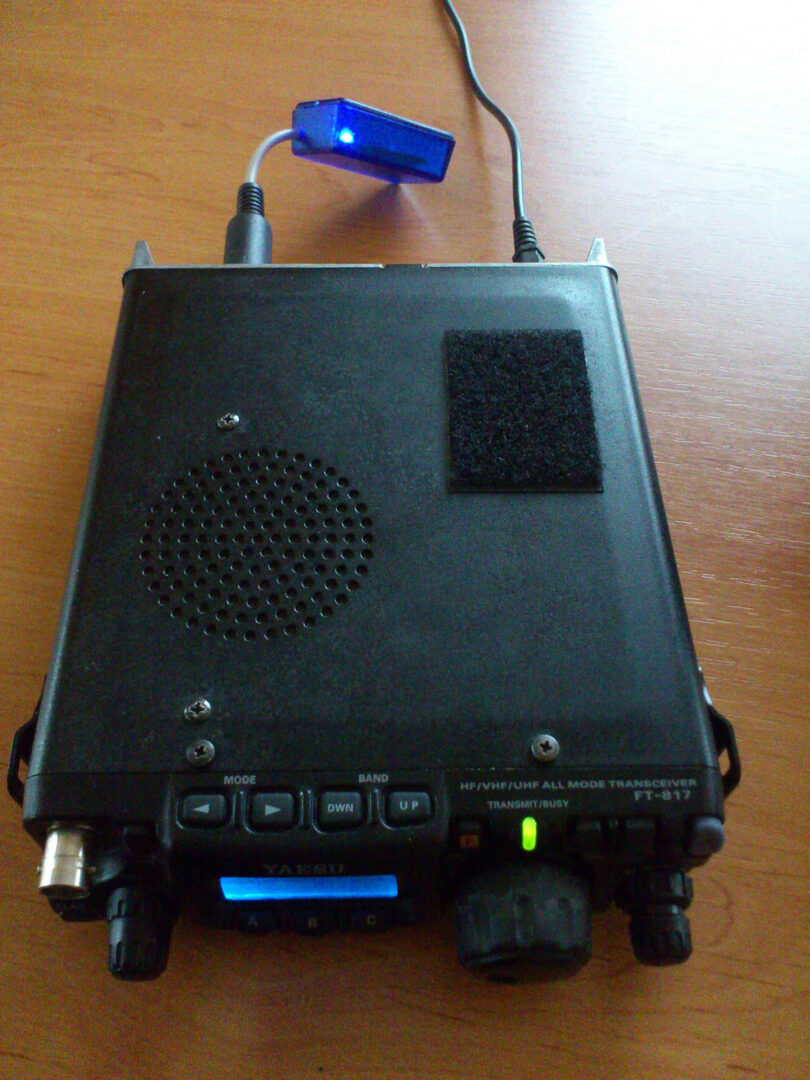

Picture by ok1cdj
The module can be programmed via a serial line using AT command and example of this USB transmitter .
The default values ??are:
speed – 9600 Baud
name – linvor
PIN – 1234

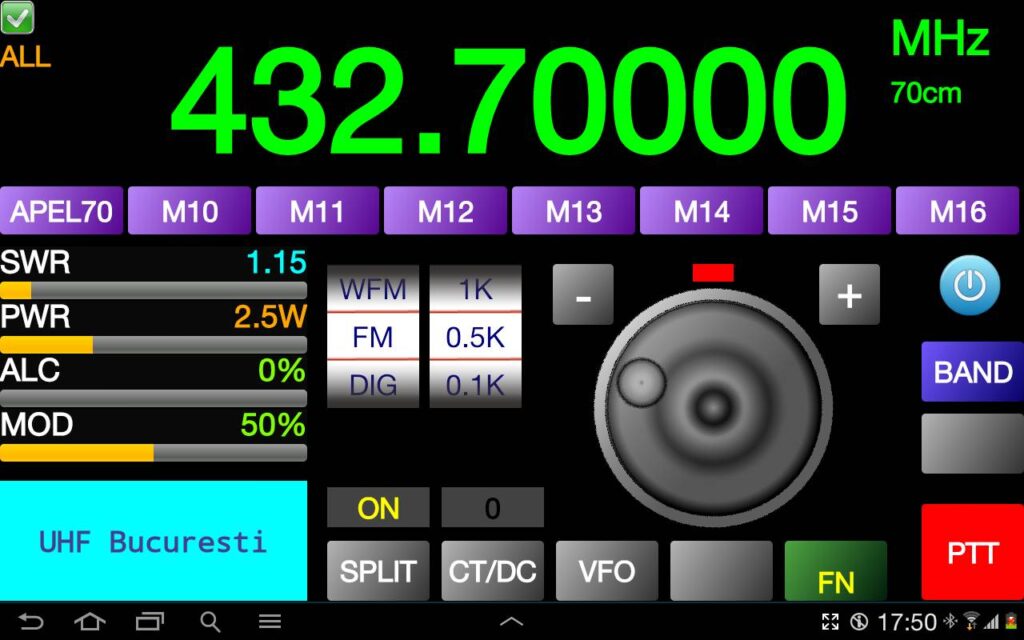

CAT Application for Android OS (Screenshot by ok1cdj)
