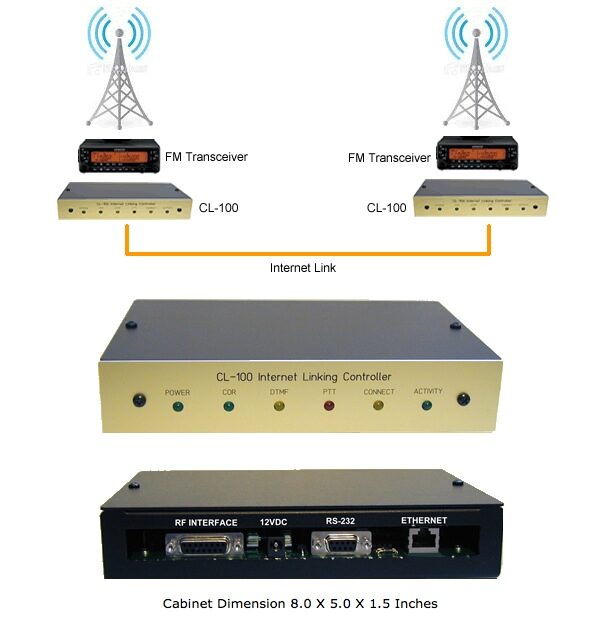

This CL-100 was specially developed to provide Internet connectivity to existing repeater controllers or remote link transceivers without the need of a supporting computer. The CL-100 connects directly to a DSL or CABLE modem. It can also be connected to a port on your router and share your existing high-speed internet connection.
Voice Synthesizer Transmitter ID.
(20) Programmable IP Addresses.
IP Address Voice Announcements.
End of Transmit Tone
DTMF Pad Test
COR Timeout Timer
PTT Timeout Timer
Inactivity Timeout Timer
(5) Remote Control Output Switches
Uses an Internet Web Browser to access the setup pages
Also an RS-232 Port for Set-up and Operational Display
64kbps audio streaming rate plus protocol overhead
320ms Adaptive Jitter Buffer to compensate for Internet latency
G.711 u-Law companded audio yielding low bandwidth requirement of 64kbps
TI Voice Synthesizer ID
In addition to identifying the transmitter the voice synthesizer announces Internet connect and disconnect messages and the status of the five remote control switches.
DTMF Key-Pad Test
A DTMF keypad test will read back the numbers decoded in a synthesized voice.
End of Transmission Tone
The CL-100 provides an optional tone to let the RF user know each time the Internet user has stopped transmitting.
Three timers control the CL-100 operation. Each timer is user programmable to afford maximum flexibility. They are: Transmitter COR Timer, PTT Timer and Inactivity Timer.
Use your Internet browser to program the CL-100. Connect your computer’s Ethernet port to the RJ45 connector on the CL-100. Address the CL-100’s internal web page. Setup is similar to setting up your router. Enter your list of IP addresses, DTMF connect codes and voice messages. Define your control codes, set the timers and choose your preferred options.
Input Logic Control
A logic input is provided so the repeater’s controller can control the CL-100. When this input is pulsed to ground the CL-100 will connect to the IP address stored in table location one.
Output Logic Control
Two output switches provide status information for the repeater’s controller. Output #1 pulses low for 500mSEC to indicate an Internet connection has been established. Output #2 pulses low to indicate an Internet disconnect has take place.
Microprocessor TI ARM Cortex M
Memory 20 IP Addresses
Voice Synthesizer TI MSP53C391N
Internet Protocol Voice – Control UDP, Setup – TCP
Logic Output Switches Active Low (Sink to Ground) 40 VDC at 50ma.
Logic Inputs Active Low (Sink to Ground)
Front Panel LEDs Power, COR, DTMF, PTT, Internet Connect, Activity
Operating Temperature -15 to +55 degrees C
Power 9 – 15VDC at 200ma max
Size 8 X 5 X 1.5 Inches
CL-100 One Internet Linking Controller Wired & Tested. $399.00
CL-100S Two Internet Linking Controllers Wired & Tested. $699.00
