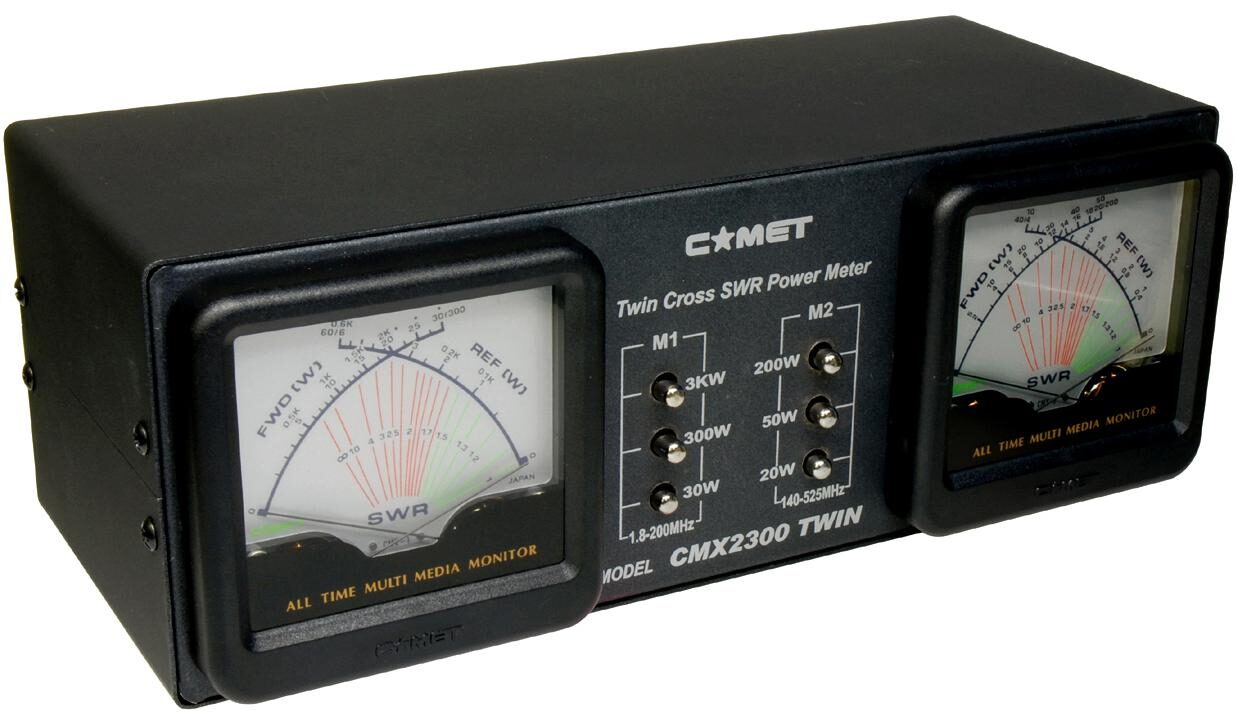

1.8-200MHz and 140-525MHz simultaneously measured on two separate meters
Full color lighted cross needle display reads FWD, REF, and SWR simultaneously
Switchable peak and average reading
Power Range: 30/300/3kW (1.8-200MHz) and 20W/50W/200W (140-525MHz)
Input loss: Less than 0.2dB
Monitor connection (BNC), 30dB attenuated for connection to a station monitor or frequency counter etc.
Accuracy: +/-10% full scale
Power cable for connecting to external 12vdc included
Dims (approx.) 10″ W x 5.25″ D x 3.75″ H
Separate sets of connectors for 1.8 – 200mHz and 140 – 525 mHz
