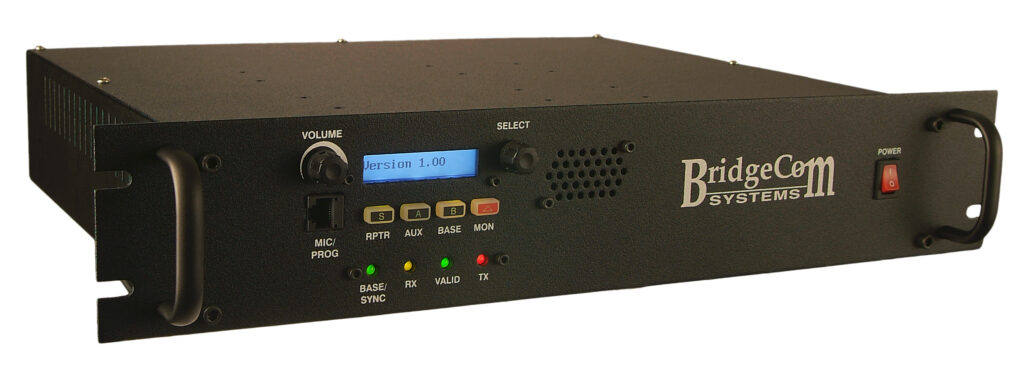

The BCR FM Repeater is an all-in-one unit that integrates a high powered RF transmitter, built-in power supply, high capacity tone panel and a 16 channel base station. Easily interface your favorite external peripheral with the D-SUB 25 Pin accessory connector. 100% LTR ready.
UHF (400-470 MHz & 450-510 MHz) VHF (136-174 MHz)
Built-In 10A Power Supply
Battery Backup with Built-in Charging Circuit
13.8 Volts Output
Repeater Disable Function via DTMF remote control
Dual Cooling Fans
Front Panel Speaker
External Speaker Out
25-pin Accessory Connector:
RX Discriminator Out
External PTT In
TX Audio In
+13.8V Out (1A Max)
COS (Carrier Operated Switch) Output
12.5 kHz/25 kHz Channel Spacing
Over-the-Air Programming and Maintenance via DTMF Tone Sequences
Adjustable RF Power
Transmitter Fine tuning
TX Timeout Timer
Per User Features:
Air Time Logging
Courtesy Tone (0, 500, 1000, 1500)
TX Hang Timer
Tone-In-Tail Selectable for quicker decodes
Carrier Operated Switch (COS)
GMRS ready and compliant
100% LTR® Compatible and Lo-Speed Data Ready
Connects to all your peripherals
Supports optional internal Duplexer
Windows® Based Programmer
2 – year warranty
