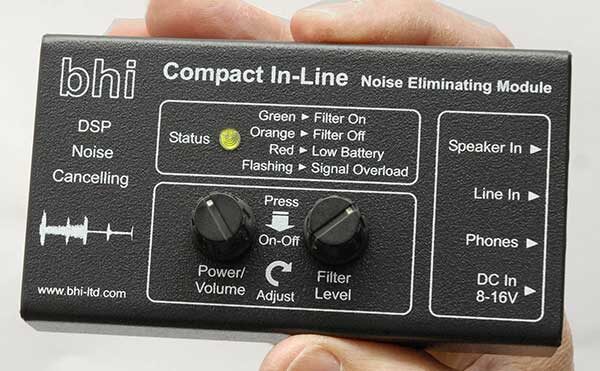

The New Compact In-Line module measures just 125 x 70 x 37 mm, and is the latest addition to bhi’s range of DSP noise cancelling products.
This small compact handheld unit is ideal for portable use, and includes the latest bhi DSP noise cancelling technology. It is designed to be used with a pair of stereo headphones, but will also drive a mono loudspeaker or a pair of powered stereo speakers.
The Compact In-Line module is powered by either two AA alkaline or NiMH batteries or from a separate 12V DC power supply (fused DC power lead supplied). All the functions are microprocessor controlled and the unit can accept speaker level and line level mono or stereo signals. It has separate speaker level and line level inputs with two separate rotary encoder controls with pushbutton action for filter level select, power on/off, volume control and stereo/mono signal selection. You simply adjust the controls to suit your current noisy conditions. This module is suitable for use on all radios and receivers including software defined radios (SDR) including the Elecraft range and FlexRadio products.
Compact handheld DSP noise cancelling module
New improved stereo/dual channel noise cancelling algorithm
Processed speech clearer and more intelligible
Easy to use controls for all functions
Use with mono, stereo or two separate audio channel inputs
Ideal for portable use, DXing, and special event stations
Use with headphones or a speakers
Over 40 hours battery life with 2 x AA alkaline or AA NiMH batteries
External supply: 8 to 16V (nominally 30mA, max 350mA peak)
Reverse polarity protected
Internal batteries: Type: AA x 2 (Alkaline or NiMh recommended)
Reverse polarity protected
Low battery indication threshold: 2.1V ±0.1V
Low battery indication: LED colour changes to red.
End-of-life threshold: <1.5V
Life: 40 hours typical (Alkaline or 2500mAH NiMh).
Auto power-off: 60 minutes if input signal < 60mVpk-pk Auto power-off can be disabled if desired. Audio Inputs Speaker level in: Stereo or Mono Input Impedance: ~7 Ohms Max withstand input power: 2 Watts RMS per channel Max input amplitude: 3.9Vpk-pk Line level in: Stereo of Mono Impedance: 6.7k Ohms typical Max input amplitude: 1.6Vpk-pk Overload indication: LED flashes for at least 3 seconds Audio Outputs Phones out: Stereo or Mono Impedance: > 4 Ohms (Can also be used as Line Level output).
Max power output: 0.2 Watts RMS per channel
Volume levels: 16 levels in 3dB steps.
