Monitor 4 sensors simultaneously for peak, Average power and coax SWR.

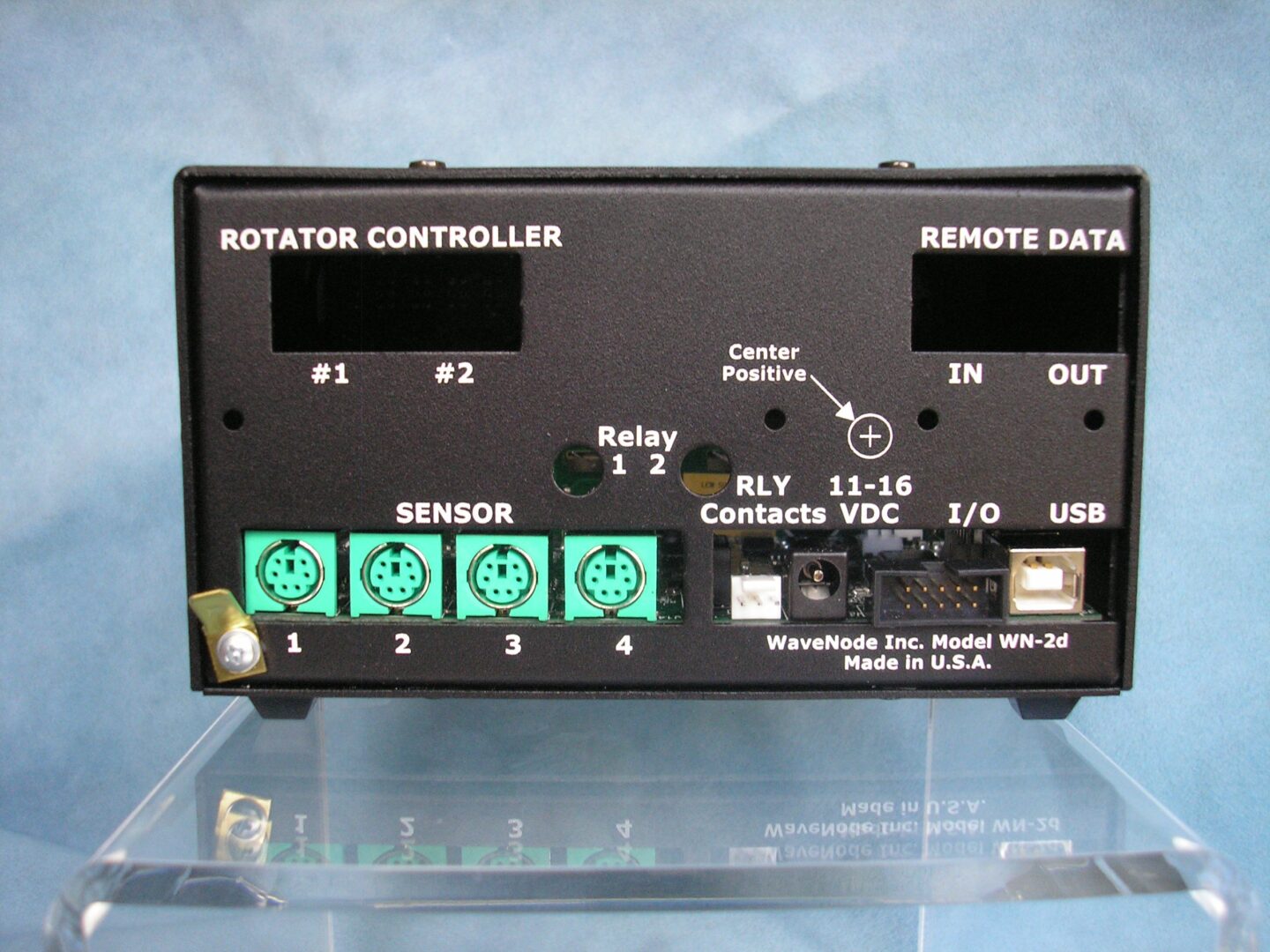

Direct USB full speed interface.
Backlit LCD display for stand-alone operation- Your PC is optional.
Oscilloscope and Spectrum Analysis of the RF Modulation- Observe IM and “Splatter” frequency components realtime.
Complete system includes (1) sensor, WN-2 unit, AC power module and software on CDROM.
Wide range of sensors cover 100 milliwatt to 8KW, 1.6 Mhz to 1.3 Ghz.
16-bit RISC processor, 12 bit A/D converter and rugged construction.
WN-2 is compact and low power. Perfect for local, mobile, emergency communications vans, and remote repeater sites.

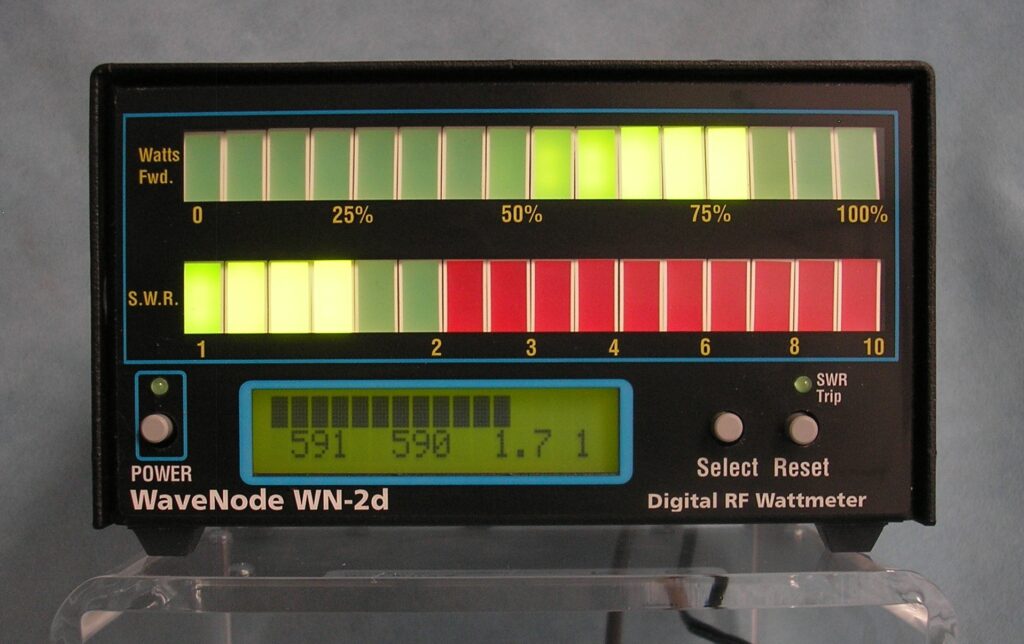

High brightness bargraphs display peak forward power and SWR.
Price: WN-2d System (system includes 1 sensor, cable, and wall supply) $450.00
HyEndFed 5 band for 80,40, 20, 15, 10 meter band
HyEndFed 5 band for 80,40, 20, (15) and 10 meter.
Max. Power : 200 watt PEP.
Length : 23 meter.
Enclosure : Polycarbonate IP67, 100% UV resistant.
SO239 Connector : Silverplated.
10-40 Meter Coaxial Alpha Loop
The 3+ foot high and wide Coaxial Alpha Loop Antenna is perfect for those operating Condo, SOTA, Beach, RADAR, or any place you need a High-Q directional HF antenna with low noise capabilities designed...
Bonito Loop ML-200
The Bonito ML-200 is a wide band active antenna for reception of long, medium and short waves as well as the lower VHF band. The antenna is is characterized by a small apcking size, low noise and excellent...
