HF Vertical Antenna Type: Monoband, adjustable
Antenna Tuner Required: No
Antenna Tuner Included: No
Antenna Power Rating: 5,000 W
Vertical Antenna Height: 55.00 ft.
Mast Mounting Clamp Minimum: 2.375 in.
Mast Mounting Clamp Maximum: 2.875 in.
Vertical Antenna Mount Included: Yes
Vertical Antenna Mount Type: Pivoting fixture
Radial Plate Included: No
Radial Wire Included: No
UNUN Included: No
Antenna Feedline Connection Type: Stainless hardware
Mounting Clamps Included: Yes
Wind Survival: 55 mph
Maximum Antenna Tubing Diameter: 3.000 in.
Antenna Weight: 90.00 lbs.
Quantity: Sold as a kit.
Notes: Radial wires required. A greater number of radials improves performance, but radial length is not critical for this ground mounted vertical antenna installation.
HF Vertical Antenna Band: 160 meters
HF Vertical Antenna Mounting Position: Ground
DX Engineering 160 Meter THUNDERBOLT™ Vertical Antennas are high-performance vertical antennas specifically designed for the 160 meter band. Achieve the strongest possible presence at your power level and be competitive with a 160 meter vertical monoband antenna that is only 55 feet tall!

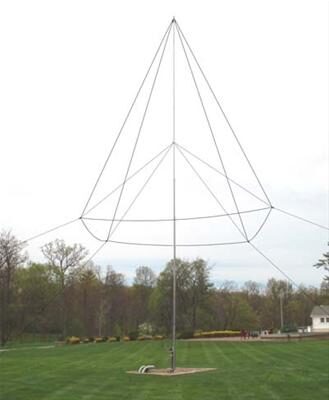

Wires and ropes have been enhanced in the product image for your viewing clarity. They are much less visible in an actual installation – providing minimal visual impact.
DX Engineering 160 Meter THUNDERBOLT™ Vertical Antennas are tunable with an impressive 40 kHz bandwidth. This means that operation on the CW DX frequencies and DX Phone frequencies is within range of most radio internal tuners – no antenna changes are necessary.
A custom designed capacity hat system allows you to get on 160 meters with unparalleled performance.
The DX Engineering DXE-160VA-1 is a slow taper 55-foot high Monoband Vertical Antenna system with a massive 3 inch OD base section. This vertical antenna is specifically designed to operate on 160 meters. Included with this antenna system is a rugged, patented* stainless steel pivot fixture for ease of raising, lowering and adjustments. Engineered with 6061-T8 and 6063-T832 corrosion-resistant aluminum tubing, stainless steel mounting brackets and stainless steel hardware, this antenna is very durable and attractive.
Why Does This Antenna Perform So Well for Its Height?
The top capacity hat is large enough that the current along the radiator is almost constant. Typical shortened verticals for this band, with smaller top-hats have currents that vary along the length and end up producing much less signal strength. This also works in the receive mode to let you hear weaker signals, although at this frequency range dedicated receiving antennas are almost a must. See DX Engineering’s full line of Receive Antennas and Array Systems.
DX Engineering 160 Meter THUNDERBOLT™ Vertical Antennas feature:
— High Efficiency Design
— 5 kW SSB and CW rated – unparalleled reliability
— Custom designed capacity hat engineered for top performance
— DX Engineering Adjustable Matching Network configures the lowest SWR
— Broad 2:1 SWR bandwidth – 40 kHz – CW + DX Phone
— Lowest possible take-off angle reduces domestic QRM signals
— Easy tilt up and down– Unique fold-over antenna mount features DX Engineering’s patented pivoting fixture, *U.S. Patent Number 8,130,168
— High power handling and high strength, UV protected EXTREN® insulators
— Ultra-rugged construction starts with 3 inch OD Aircraft Grade heavy wall tubing
— Withstands steady-state winds in excess of 50 mph
The optional DXE-VRW-1 Manual Winch for easy one-person raising and lowering of the antenna is available from DX Engineering. You can move the DXE-VRW-1 winch between similar antennas in a multi-antenna installation.
This antenna system requires a heavy duty mounting pipe. Recommended installation should provide up to 3″ OD heavy wall galvanized steel pipe set in concrete. Schedule 80 pipe that is called 2-1/2″ has an outside diameter of 2.875″ is recommended. 36″ of the mounting pipe should extend above ground level. Depth of the mounting hole and amount of concrete is dependent on local soil type, condition and antenna guying.
