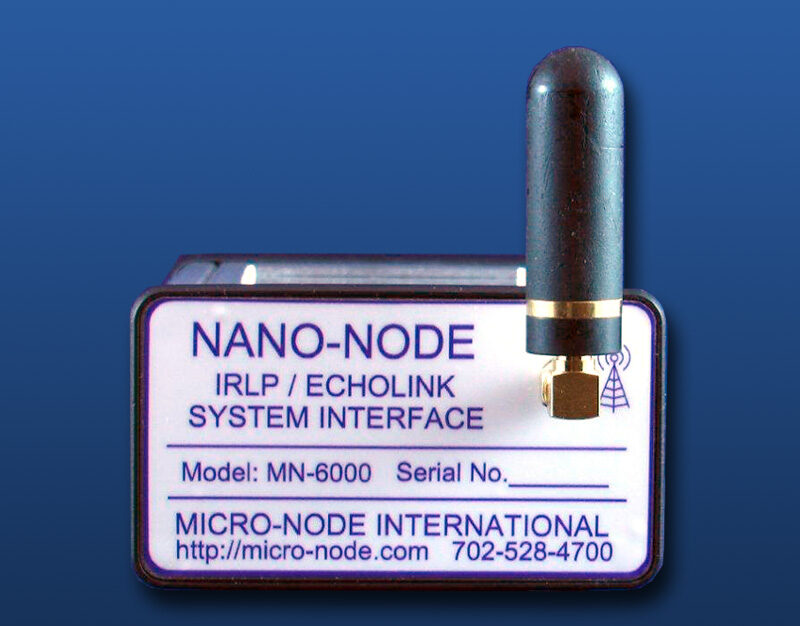

The Micro-Node, IRLP Nano-Node is a complete package where you can connect your Node to the Internet and privately talk to other Hams on their Nodes. Or you can talk into a Reflector and talk to many nodes and/or repeaters with nodes. You can have world wide coverage using your 1 watt handy talkie. This is a complete package with; computer, Echolink / IRLP Node software and built-in transceiver.
Complete IRLP / Echolink Package Just “Plug And Play”
Absolutely No Knowledge Of Linux Required
All Setup, Control and Monitoring Operations Are Performed Using The Built-in Menu Driven Touch Screen TFT LCD Display. Or Remotely Using
Any Web Browser To Access The Node’s Built-In Web Pages
Select from Either A Built-In Touch Screen Programmable 430-470mah 0.2W Simplex Radio or your External Radio + Operation.
7 to 18 Volt Low Power Requirement Making It Ideal For Mobile or Portable Operation.
Echo/IRLP Operation Built In
Available as a Cat 5 Hardwire unit, or as a WIFI unit.
Take it mobile and connect thru your smart phone “Personal Hotspot”.
The complete ECHO/IRLP Node Computer is an ultra small package measuring just 5 x 3 x 1.7 inches. The unit comes complete with the ECHO/IRLP/Debian Operating System pre-installed with node number assigned (new or your existing). Just “Plug And Play”. No knowledge of Linux Required. The only thing you will need in addition to this unit is a 430-470mhz radio to simplex to the node radio and your Ham Ticket.
Complete IRLP / Echolink Package. “Just Plug And Play”/ Absolutely no knowledge of Linux Required.
The entire united including the 0.2 Watt Radio fits in the palm of your hand. Just 5x3x1.7 inches
Front panel color TFT Touch screen display allows setting of Node option plus monitor and control the node locally.
Any web browser can be used to set Node options plus monitor and control the Node from any remote location via on the Internet.
It can be used with the built in programmable 430 to 470 mhz 0.2 watt simplex FM transceiver or an external radio.
Echolink system software is installed and ready for use.
Operates from a 7-18VDX 300-400ma Power source. Ideal for mobile or portable operation.
Connect to Internet with Cat 5 hardwire to router, or use 802.11 b (WIFI) antenna.
Base Unit $495 USD
Base Unit +802.11.bg $525 USD
