Our new K4 harnesses the latest in signal processing while retaining the best aspects of the K3S and P3. The resulting user interface makes the technology transparent, allowing you to focus on working the world.
160-6 meter, all-mode coverage & dual RX
The K4 includes dual receive over 100 kHz to 54 MHz. Since it utilizes direct sampling, there’s no need for crystal filters in the K4 or K4D (see Models, back page). For extreme-signal environments, we offer a dual superhet module (standard in the K4HD). An internal VHF/UHF module is also planned.
High-resolution mini-pan for each receiver
Advanced fine-tuning aid, with its resampled bandwidth as narrow as +/- 1 kHz, is displayed separately from the main panadapter.
Simple operation and setup

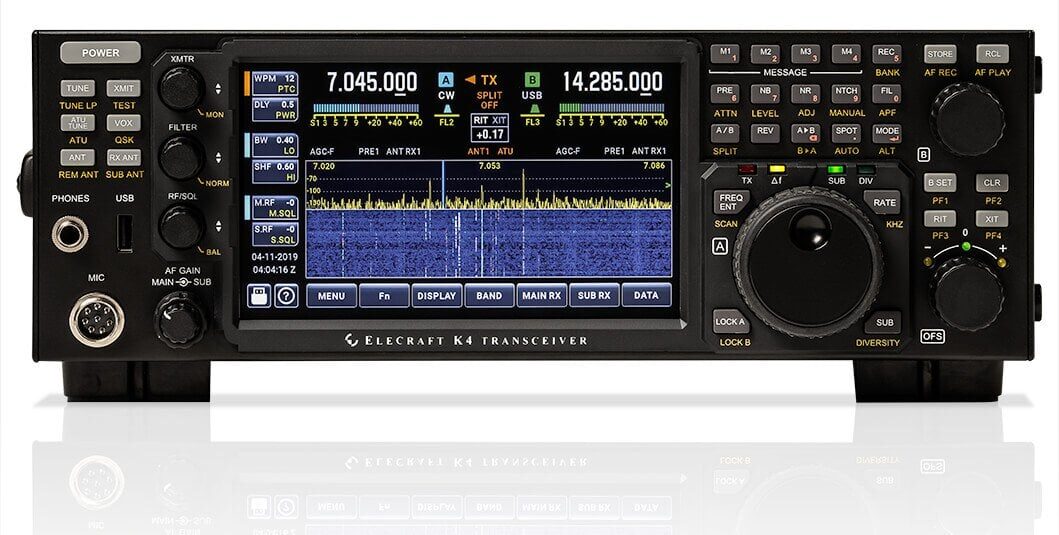

The K4 features a large, full-color touch display, combined with a rich set of real controls. Per-VFO transmit metering makes split mode completely foolproof. Band-stacking switches and per-receiver controls are both intuitive and versatile, adapting to operating context. Usage information on these and other features is just one tap away, thanks to our built-in help system.
Rich I/O complement

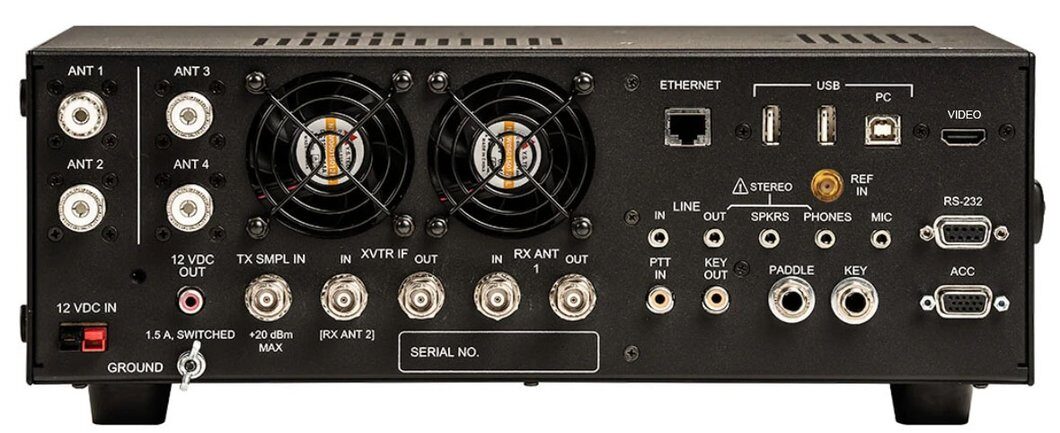

The rear panel includes all the RF, analog and digital I/O you’ll need to complete your station. All K-line accessories are supported, including amps, ATUs, and our K-Pod station controller. The video output supports an external display with its own user-specified format.
Full remote control from multiple devices
The K4 can be 100% remote controlled, via Ethernet, from a second K4 as well as a PC, notebook, or tablet. Panadapter data is included on all remote displays.
Modular hybrid architecture
Basic K4 with wide-range dual receive
K4D with diversity receive
K4HD with a dual superhet module for exceptional dynamic range
You can upgrade or add options as desired, or as new technology becomes available. This extensibility applies to software as well. The K4’s powerful, fast-starting CPU provides unlimited expansion opportunities.
Fast signal processing
The RF signal chain in the K4 incorporates parallel hardware processing of data streams, including a dedicated DSP subsystem. This, combined with silent, PIN-diode T/R switching, ensures fast CW break-in. Data and speech-processing delays are also minimized.
Standard DSP features include easy-to-adjust, per-mode RX/TX EQ; clean, punchy RF speech processing; full DVR capabilities; and several built-in data decode/encode modes. Direct-sampling technology results in an ultra-flat passband response for clean RX and TX audio. Since the signal chain is software-defined, the DSP can be field upgraded to add new algorithms and operating modes.
KAT4 ATU Option
The KAT4 ATU has a nominally 10:1 matching range. It includes 3 antenna jacks, any one of which can be selected as an input for one or both receivers.
Price: 6,600.00 €
