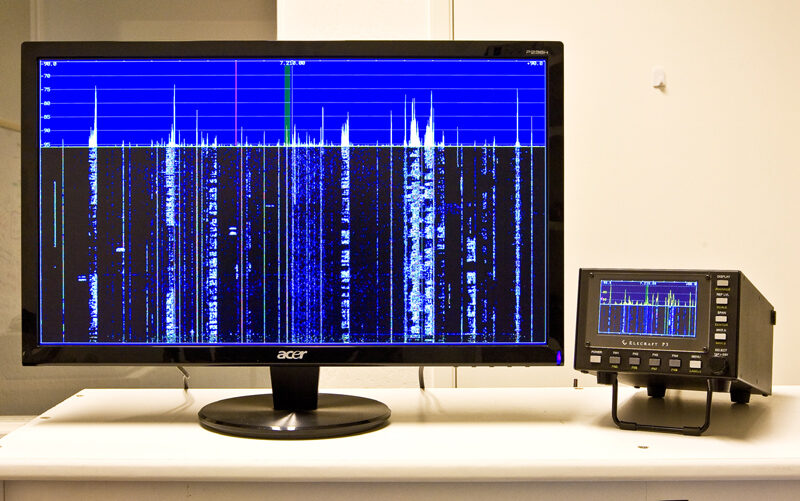

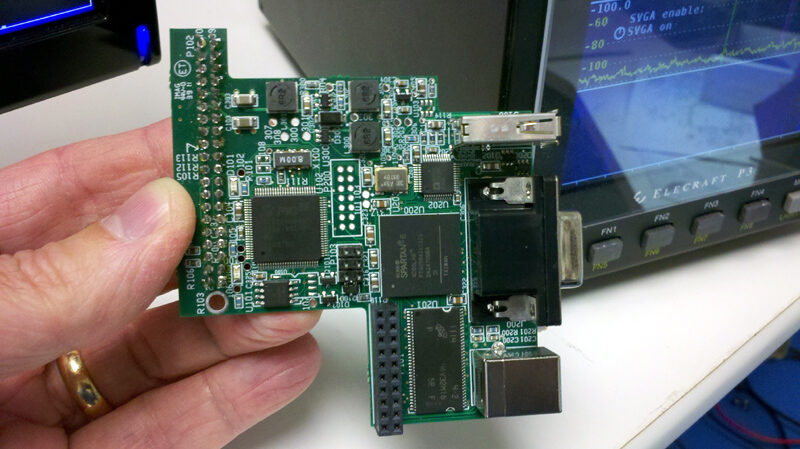

The P3SVGA adapter adds wide screen display capability to the P3 (up to 1920x1080p). It also has a dedicated high speed FFT processor that performs a 2048 point FFT in parallel with the P3’s existing processor, for a much higher frequency resolution per dot display on the larger screen. The P3SVGA adapter is a plug-in internal card to the P3 that can be easily added by the user.
The P3SVGA also includes an interface for our future USB keyboard option that will allow direct digital mode operation via the K3 and P3, with data display on the P3 and P3SVGA screens.
Currently supported native screen resolutions (other resolutions may be added in the future):
1024 x 768 1280 x 1024 1440 x 900 1600 x 900 1920 x 1080
Note: Most other resolution flat screen displays also support the next lower P3 screen resolution.
Like the P3, the P3SVGA is firmware downloadable and new features will be available over time.
The P3SVGA is now available on our order page. It is in field Test and its estimated starting ship date is now March 5th.
