Experimental Shortwave Receiver with Touchscreen.
Device properties: IF 10.7 MHz 455 KHz with Frequency- Preselector.

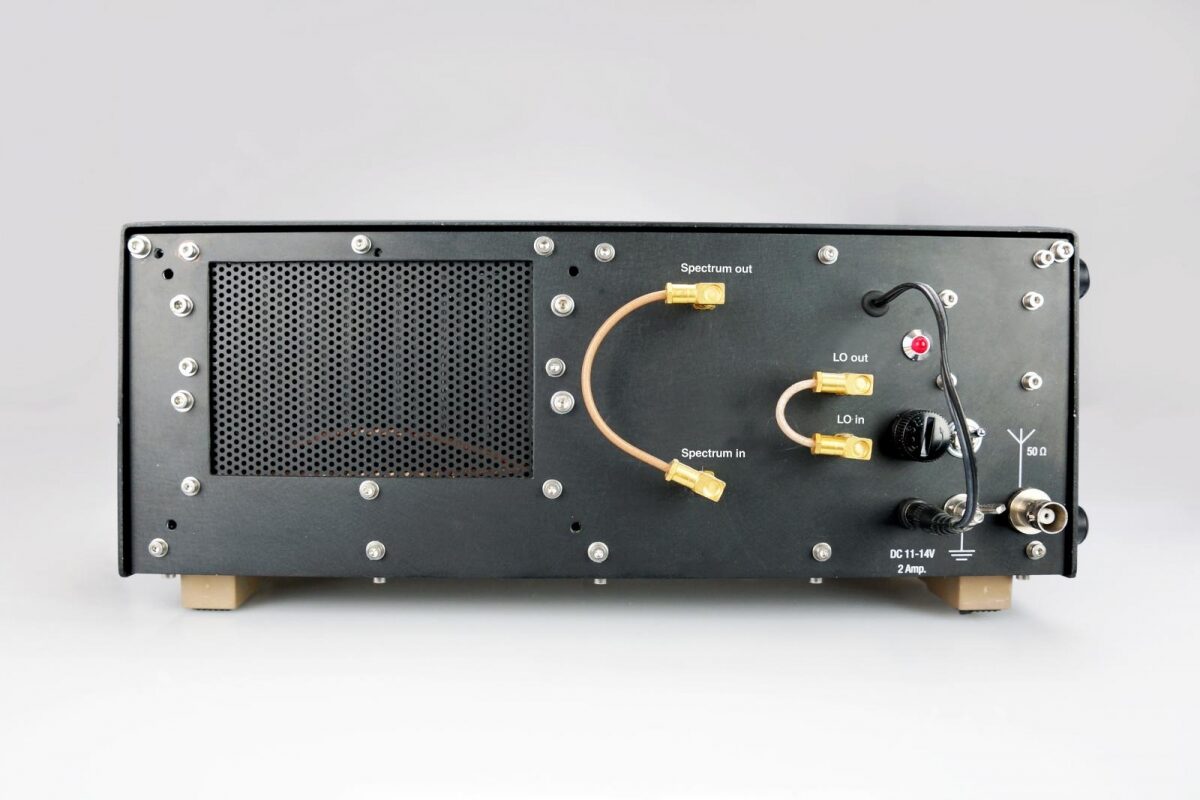

Photo by Stampfl

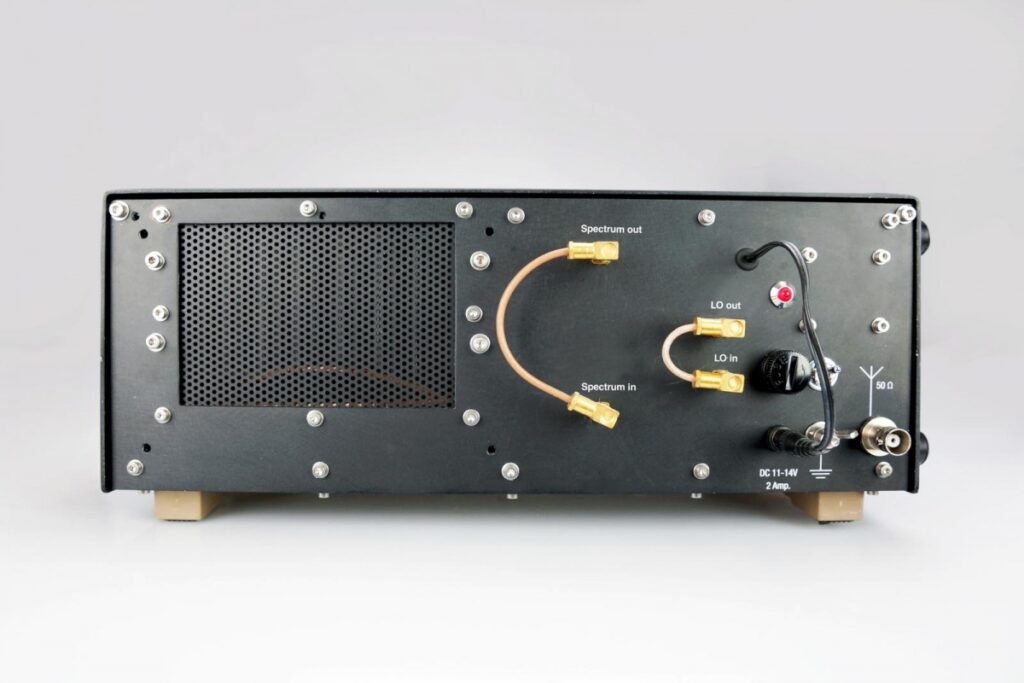

Photo by Stampfl
Dimensions & Weight:
Height: 11 cm
Depth: 18 cm
Width: 30 cm
Weight: 1.4 kg

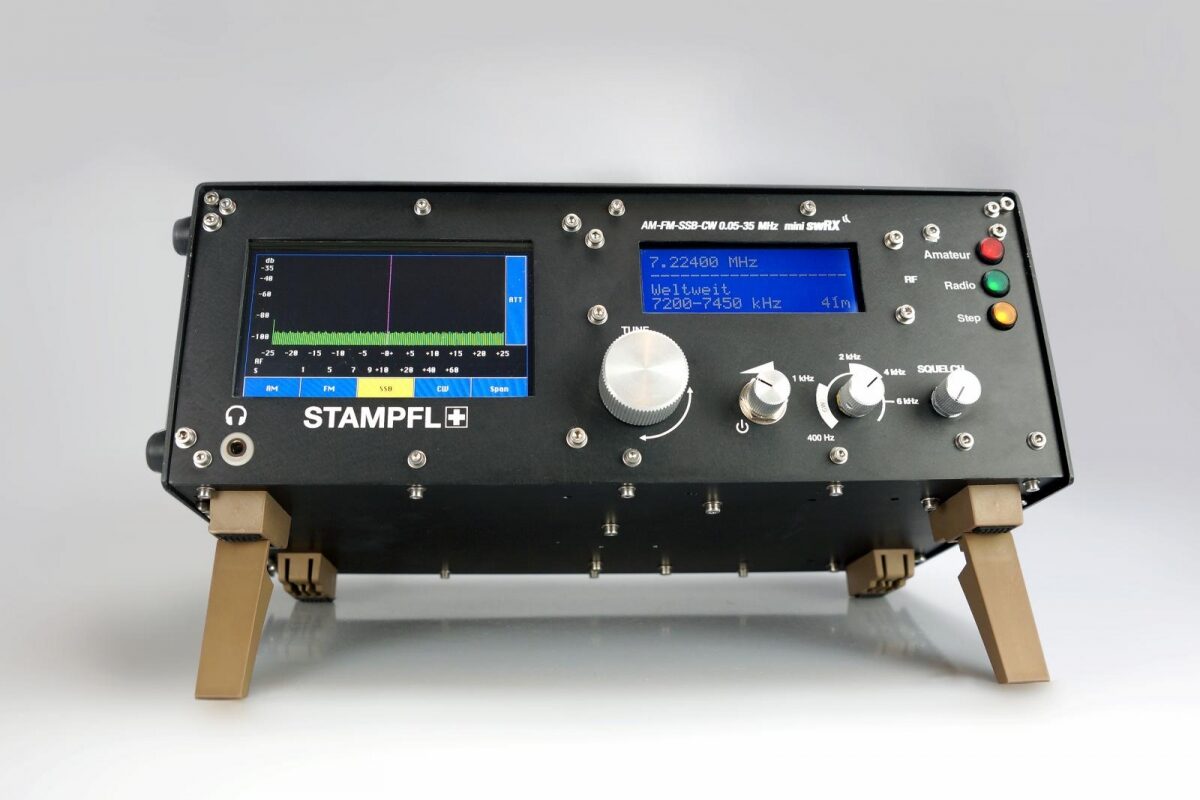

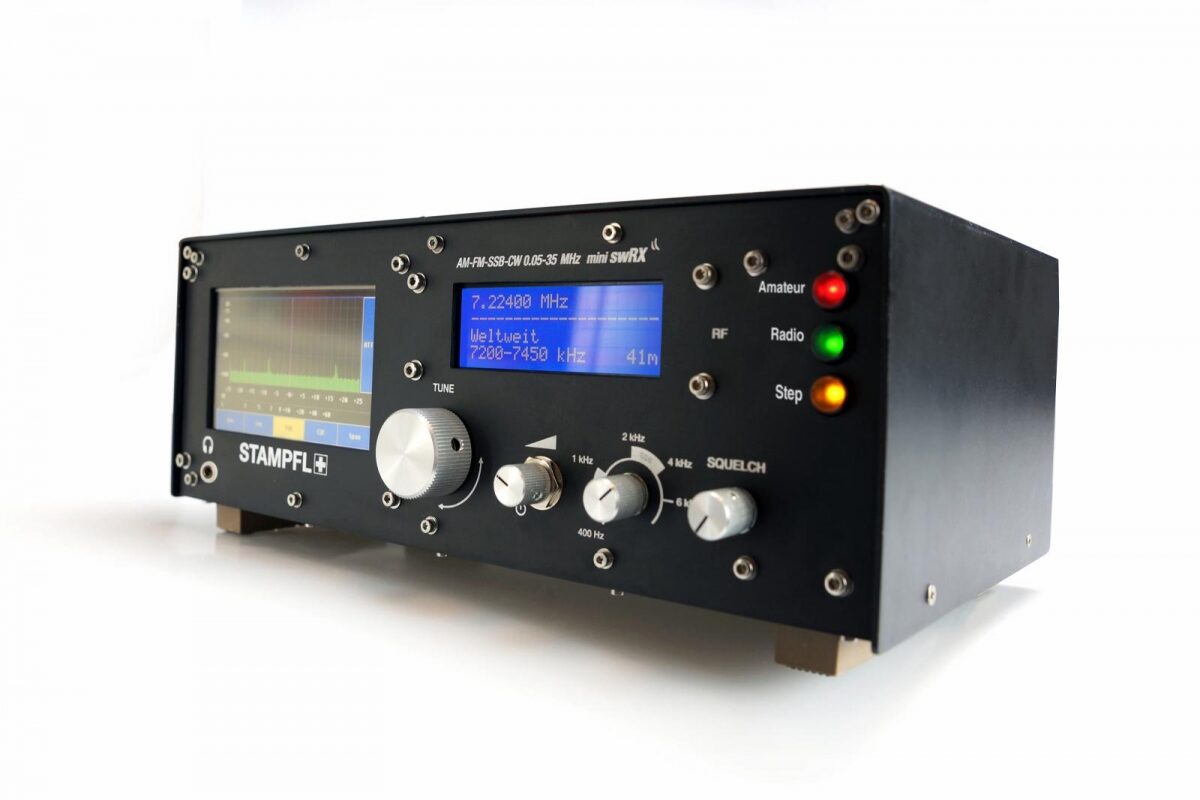

The slightly smaller version of the swRX in which the band and frequency steps were outsourced to buttons for faster access. MODULATION, SPAN and ATT can be selected using the touchscreen. The goal was to achieve a smooth and comfortable operation.
