Chinese HF / VHF / UHF Antenna Analyzer (US Clone of MFJ-266)

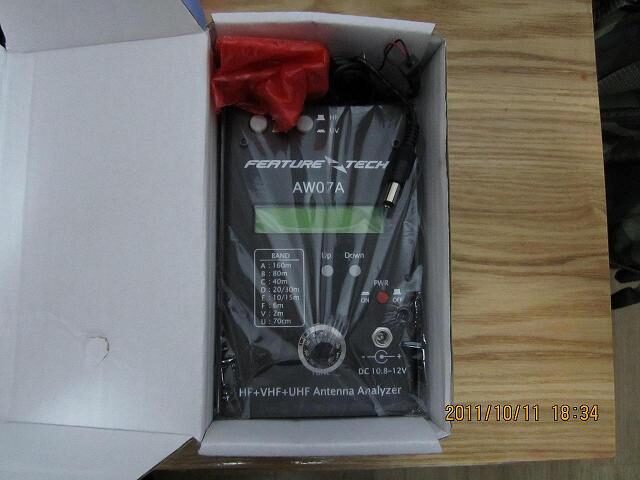

The AW07A is a self-contained handheld RF analyzer that performs the following diagnostic functions:
SWR (1:1 to 9.9:1)
Complex Impedance (Z = R + jX) Impedance Magnitude (Z = ?) Capacitance (pF)
Relative Field Strength (mV) Frequency (MHz)
The AW07A also generates a 2-dBm RF signal that may be used to check receivers, networks, amplifiers, and antenna patterns.
The AW07A covers all bases — from 160 Meters through 6 Meters, the FM broad-
cast band, Airband, 2 Meters, 70 cm, plus VHF/UHF commercial 2-way frequencies:
Band A: 1.5 to 2.7 MHz
Band B: 2.5 to 4.8 MHz
Band C: 4.6 to 9.6 MHz
Band D: 8.5 to 18.7 MHz
Band E: 17.3 to 39 MHz
Band F: 33.7 to 65 MHz
Band V: 85 to 185 MHz
Band U: 300-490 MHz
The velvet-smooth 10:1 vernier drive and solid state varicap makes fine tuning a breeze, and a built-in dial lock prevents accidental detuning while making measurements. Switched backlighting makes LCD screen easy-to-read in any light.
SWR, Impedance Magnitude, and Complex Impedance:
In SWR Mode, the MFJ-266 reads SWR 1:1 to 9.9:1, Impedance Magnitude 10-500
Ohms and Complex Impedance (resistance and reactance). Best of all, it displays all three parameters simultaneously and operating frequency with one quick glance. No other low-cost handheld analyzer offers this! (Note: Z-mag and R+jX not displayed on UHF).
Also available Models: AV03H, AW05A
For Details please contact by E-MAIL: firstname.lastname@example.org
HyEndFed 5 band for 80,40, 20, 15, 10 meter band
HyEndFed 5 band for 80,40, 20, (15) and 10 meter.
Max. Power : 200 watt PEP.
Length : 23 meter.
Enclosure : Polycarbonate IP67, 100% UV resistant.
SO239 Connector : Silverplated.
