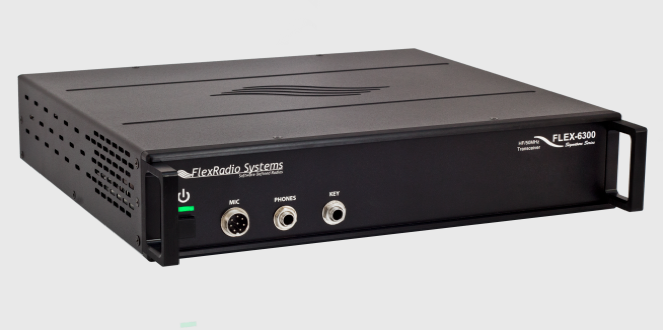

The FLEX-6300™ is for the amateur operator who wants to experience the magic of software defined radio in the highest performance 100W transceiver family available today. The FLEX-6300 provides an entry point into multi-dimensional amateur radio operations from CW to the latest digital modes. Providing dual panadapters and waterfall displays, as well as two full-performance slice receivers, the FLEX-6300 opens up new operating capabilities at an affordable price.
FLEX-6300 Feature Highlights
- Maximum Slice Receivers: Two (2)
- Maximum Panadapter Bandwidth: 7 MHz
- Antenna Connectors: SO-239×2; XVTR-BNCx1
- Wideband Frequency Coverage: 30 kHz – 54 MHz
- Transmit Frequency Coverage: 160-6m amateur bands, 100W nominal output
- Transverter IF Frequency Coverage*: 100 kHz – 54 MHz
- Digital Audio Exchange (DAX) Channels: 2
- DAX IQ Channels/Bandwidth per Channel (DAXIQ): 2 @ 24 kHz – 96 kHz
- Microphone Connector: Unbalanced 8-pin Foster
- Antenna Tuner Unit (ATU): Optional
Receiver Specifications
Receiver Architecture: Direct Digital Sampling
Spectral Capture Units: One (1)
Maximum Slice Receivers: Two (2)
Maximum High Resolution Spectrum Displays: Two (2)
Maximum Panadapter Width: 7 MHz
ADC Resolution: 16-bits
ADC Sampling Rate: 122.88 Msps
Wideband Frequency Coverage: 30 kHz – 54 MHz
DAX IQ Channels / Bandwidth Per Channel: Two (2) @ 24 kHz – 96 kHz
DAX Audio Channels: Two (2)
Amateur Band Preselector Coverage: NA
Preamplifiers / Attenuators: 0 to +20 dB
Spurious and Image Rejection Ratio: 80 dB or better
External Powered Speaker Output Impedance Level: 600 Ohm Stereo Unbalanced
Transmitter Specifications
Transmitter Architecture: Direct Digital Up-conversion
TX DAC Resolution: 16-bits
TX DAC Sampling Rate: 122.88 Msps
RF Output Power: 1-100W nominal SSB, CW, FM, RTTY, Digital; 1-25W nominal AM
Amateur Band Coverage at Rated Power Output: 160m – 6m
Low Pass PA Filter Bands: 160m – 6m ham band only
Transverter IF Output Power: +0 dBm Typical; +10 dBm max
Transverter IF Frequency Coverage: 100 kHz – 54 MHz
Modulation System: Digital Low Power at Carrier Frequency
Maximum FM Deviation: 5 kHz
DAX Transmit Channel: Yes
Carrier / Unwanted Sideband Suppression: Harmonic Radiation 1.8 – 50 MHz Amateur Bands: Transmit Bandwidth: Default 100-2900 Hz (Variable 50-10000 Hz)
Microphone Connector: Unbalanced 8-pin Foster
Microphone Impedance: 600 Ohms Nominal (200-10kΩ)
Antenna Tuner Specifications
Matching Range 80m – 10m: Optional, 8.3 Ohms – 300 Ohms
Matching Range 160 and 10m: Optional, 16.7 Ohms – 150 Ohms
General Specifications
USB 2.0 Ports (peripheral control): Two (2)
Master Clock Frequency: 122.88 MHz
Master Clock Phase Noise: -140 dBc@10kHz
10 MHz Reference Clock Stability: 0.5ppm TCXO
GPSDO Frequency Stability (GPS locked): NA
Emission Modes: USB, LSB, CW, RTTY**, AM, Synchronous AM, FM
Frequency Resolution: 1 Hz min.
Antenna Connectors: SO-239×2, XVTRx1
Antenna Impedance (w/o tuner): 50 Ohm Unbalanced
Electrical
Power Supply Requirements: +13.8V DC nominal ±15%
Current Drain (Receive/Transmit Max): 1.7A / 23A @ 13.8V
Mechanical
Height: 3.875″ (7.1 cm) with feet
Width: 13″ (33 cm)
Depth: 11.75″ (29.8 cm)
Weight: Approximately 10 lbs. / 4.5 kgs
Operating Temperature: 0 to +50 degrees C; +32 to +122 degrees F
Options
Antenna Tuning Unit (ATU); greater than 3:1 on 80-10m, up 2.5:1 on 160 and 6m
Front Handle Kit (adds 1 inch/2.5 cm to total depth
Specifications subject to change without notice.
** Requires 3rd party software.
Price: $2499 USD
