FlexRadio systems Wideband SDR Transceiver FLEX-6700

New equipment
0 Comment
Tags: new equipment,SDR
Date: 13 Jun 2016

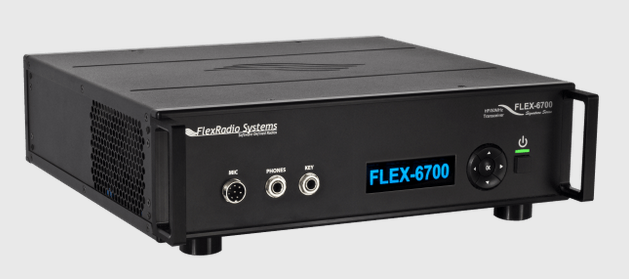

The FLEX-6700™ is for the most demanding amateur radio operator who desires the ultimate on-air experience. With dual spectral capture units (SCUs), the FLEX-6700 allows multiple active antennas providing reception and unprecedented spectrum visibility across up to eight panadapters and waterfalls. The FLEX-6700’s dual-stage RF preamplifiers enhance weak signal reception up through six meter and two meter bands*. Total flexibility and the highest performance sets the FLEX-6700 apart from other radios.

*Two meter transmit power limited to -15 to +7 dBm; external power amplifier not included.

FLEX-6700 Receiver Performance Data
The FLEX-6700 has recently been ranked #1 based on narrow spaced Third-Order Dynamic Range (DR3) by Sherwood Engineering, Inc., an independent ham radio receiver testing facility. Check out the complete listing of FLEX-6700 by visiting the SEI Receiver Test Data web page.

Video by KM4CQG

Features:

Maximum Slice Receivers: Eight (8)
Maximum Panadapter Bandwidth: 14 MHz
Antenna Connectors: SO-239×2; BNCx2; XVTR-BNCx1
Wideband Frequency Coverage: 30 kHz – 72 MHz; 135 – 165MHz
Transmit Frequency Coverage: 160-6m amateur bands, 100W nominal output
Transverter IF Frequency Coverage*: 100 kHz – 72 MHz; 135 – 165MHz
Digital Audio Exchange (DAX) Channels: Eight (8)
DAX IQ Channels/Bandwidth per Channel (DAXIQ): Four (4) @ 24 kHz – 192 kHz
Preselectors: 160 – 2m (except 60m)
Microphone Connectors: Unbalanced 8-pin Foster, Balanced XLR/TRS
Antenna Tuner Unit (ATU): Integrated
Full Continuous Coverage Transmit: MARS/CAP Capable

Receiver Specifications:

Receiver Architecture: Direct Digital Sampling
Spectral Capture Units: Two (2)
Maximum Slice Receivers: Eight (8)
Maximum High Resolution Spectrum Displays: Eight (8)
Maximum Panadapter Width: 14 MHz
ADC Resolution: 16-bits
ADC Sampling Rate: 245.76 Msps
Wideband Frequency Coverage: 30 kHz – 72 MHz; 135 – 165 MHz
DAX IQ Channels / Bandwidth Per Channel: Four (4) @ 24 kHz – 192 kHz
DAX Audio Channels: Eight (8)
Amateur Band Preselector Coverage: 160m – 6m (except 60m)
Preamplifiers / Attenuators: -10 to +30 dB
Spurious and Image Rejection Ratio: 100 dB or better
External Powered Speaker Output Impedance Level: 600 Ohm Stereo Unbalanced

Transmitter Specifications:

Transmitter Architecture: Direct Digital Up-conversion
TX DAC Resolution: 16-bits
TX DAC Sampling Rate: 491.52 Msps
RF Output Power: 1-100W nominal SSB, CW, FM, RTTY, Digital; 1-25W nominal AM
Amateur Band Coverage at Rated Power Output: 160m – 6m
Low Pass PA Filter Bands: 1.8 MHz – 30 MHz continuous, 50 MHz – 54 MHz
Transverter IF Output Power: +0 dBm Typical; +15dBm max (+8 dBm, 2m)
Transverter IF Frequency Coverage: 100 kHz – 72 MHz; 135 MHz – 165 MHz
Modulation System: Digital Low Power at Carrier Frequency
Maximum FM Deviation: ±5 kHz
DAX Transmit Channel: Yes
Carrier / Unwanted Sideband Suppression: Harmonic Radiation 1.8 – 50 MHz Amateur Bands: Transmit Bandwidth: Default
100-2900 Hz (Variable 50-10000 Hz)
Microphone Connectors: Unbalanced 8-pin Foster, Balanced XLR/TRS
Microphone Impedance: 600 Ohms Nominal (200-10kΩ)

Antenna Tuner Specifications:

Matching Range 80m – 10m: 8.3 Ohms – 300 Ohms
Matching Range 160 and 6m: 16.7 Ohms – 150 Ohms

General Specifications:

USB 2.0 Ports (peripheral control): Two (2)
Master Clock Frequency: 983.04 MHz
Master Clock Phase Noise: -147 dBc@ 10 kHz; -152 dBc@ 100 kHz
10 MHz Reference Clock Stability: 0.02ppm OCXO
GPSDO Frequency Stability (GPS locked):1 5 x 10 (-12) over 24 hours
Emission Modes: USB, LSB, CW, RTTY2, AM, Synchronous AM, FM, NFM, DFM
Frequency Resolution: 1 Hz min.
Antenna Connectors: SO-239×2, BNCx2, XVTRx1
Antenna Impedance (w/o tuner): 50 Ohm Unbalanced

Electrical:

Power Supply Requirements: +13.8V DC nominal ±15%
Current Drain (Receive/Transmit Max): 3A / 23A @ 13.8V

Mechanical:

Height: 4″ (10.2 cm) with feet; 3.5″ (8.9 cm) without feet attached
Width: 13″ (33 cm)
Depth: 12″ (30.5 cm) or 13″ (33.04 cm) with front handles
Weight: Approximately 13 lbs. / 5.9 kgs
Operating Temperature: 0 to +50 degrees C; +32 to +122 degrees F

Options:

2U, 19inch (48.26 cm) Rack Mounting Kit
Front Handle Kit (adds 1 inch/2.5 cm to total depth
GPSDO with Rear Panel 10 MHz Reference Output

Specifications subject to change without notice.
1-Requires optional GPSDO module
2-Requires 3rd party software.

FLEX-6000 Family Datasheet (2.0 MB)

Read also: FlexRadio systems “Maestro” Control Unit

Price: $7,499.00 USD

Link
