Antenna Switcher with 8 inputs by 6 output remotely controlled.
This switcher has one internal interlock system to prevent switch the same antenna on both radios at the same time.

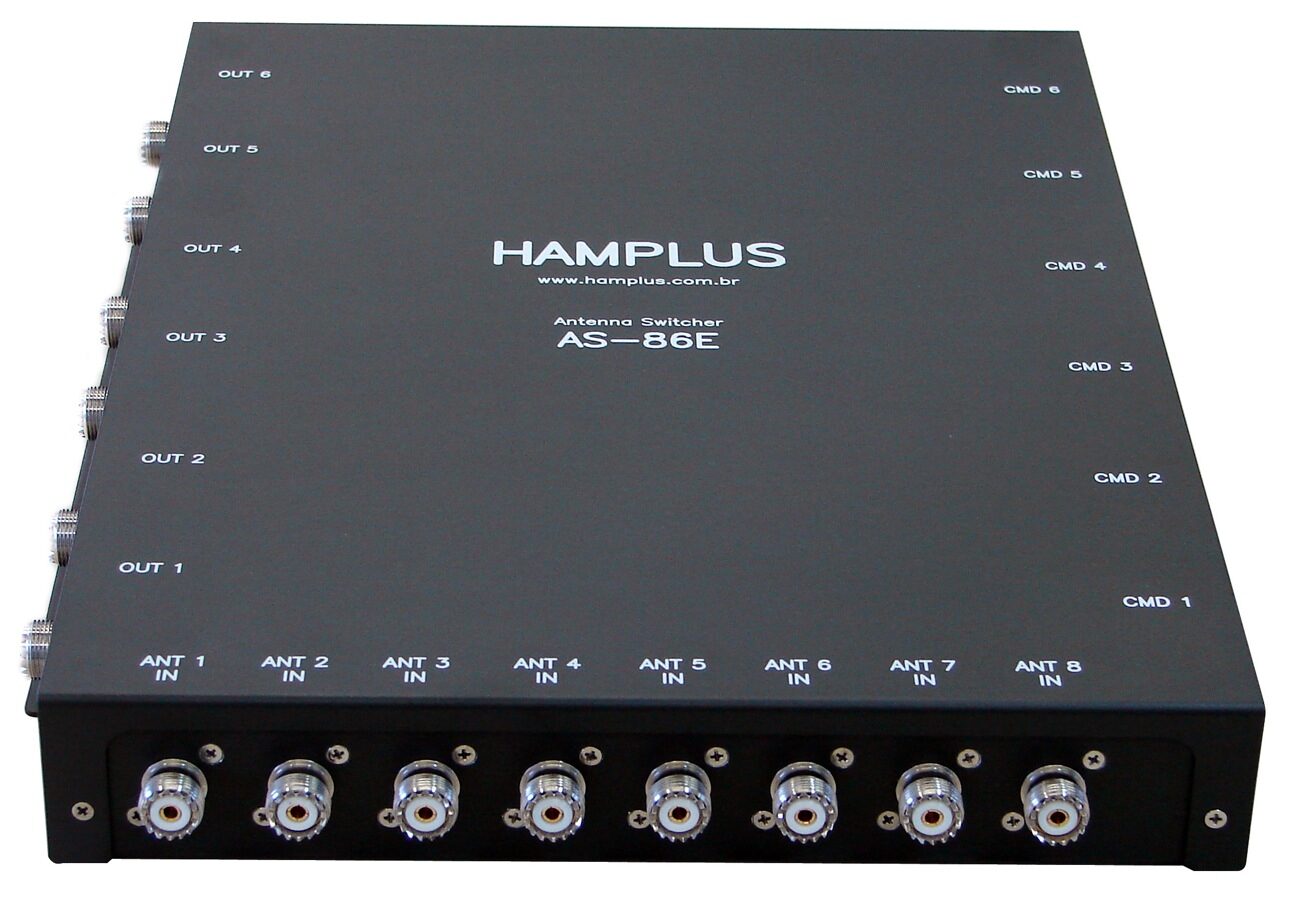

Aluminum cabinet painted in the dark gray color, having 10 UHF type (PL-259) for the R.F connections and one DB-25 for remote control.
All antenna inputs are switched to ground when not in use.
When the power are switched off, all antenna inputs are routed to ground for protection purposes.

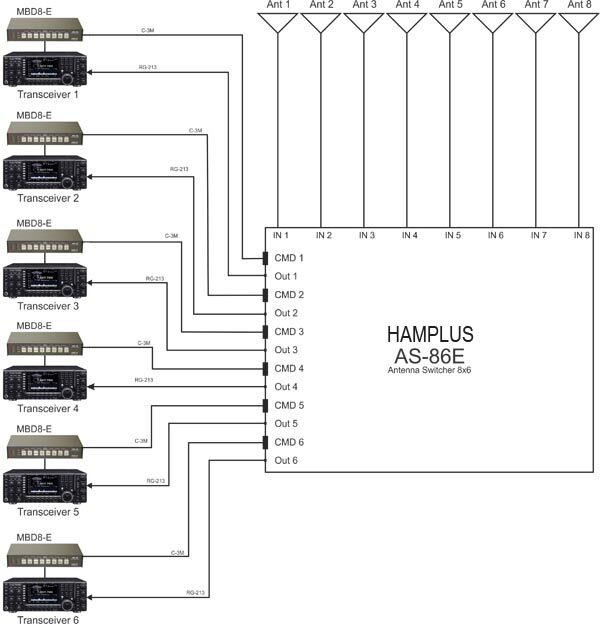

The switcher AS-86e receives the signals from eight antennas selecting one of them for each radio (six of then), leaving the others not in use, shorted to ground. In the case of power supply disconnection, the radios became free and all antennas are grounded.
