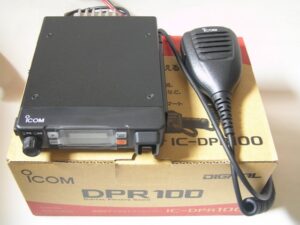

IC-DPR100’s high-output digital simple radios available in the easy registration process.

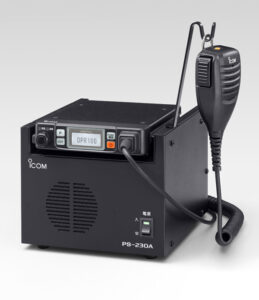

Used in conjunction with cell-type IC-DPR6 in outdoor activities such as camping, hunting, combined with desktop power PS-230A in event management, such as sports, festivals and in a wide range of scenes.
Width 125.0mm × height 29.0mm × depth 180.0Mm (I except the projections)
About 900 g (body only) , about 1090 g (HM-204 is installed)
Submit: 30ch, reception: 30-CH + 5ch ※ ※ over use channel (S1 ~ S5)
5W (1W) + 20% -50%
Double superheterodyne system
Over 3dBμVemf following (BER = 1 × 10 -2when static)
+ 5DBmyuVemf below (BER = 3×10 -2 when fading)
More than 4W (10% distortion at the time by the load impedance 4Ω)
DC13.8V ± 10%, DC26.4V ± 10%
during transmission: 2.0A (typ.) (when 5W transmission)
upon receipt: 1.3A or less (4Ω load, VOL_MAX when, typ.)
standby time: (. typ) 0.7A followingDC26.4V when sending: 1.5A (typ.) (when 5W transmission) upon receipt: 0.8A or less (4Ω load, VOL_MAX when, typ.) standby time: 0.5A or less (typ.)
Operating temperature limit
-20 ℃ ~ + 60 ℃
Microphone, application forms Kit, instruction manual
Transmit power: 5 w/ 1 W (switchable)
Distance: 1 ~ 10 km （ 5 W at output time. Differ depending on the communications environment. ）
Number of channels: sent: 30 ch, receiver: 30ch+5 ch *
* Over utilization channel （ S1-S5 ）
