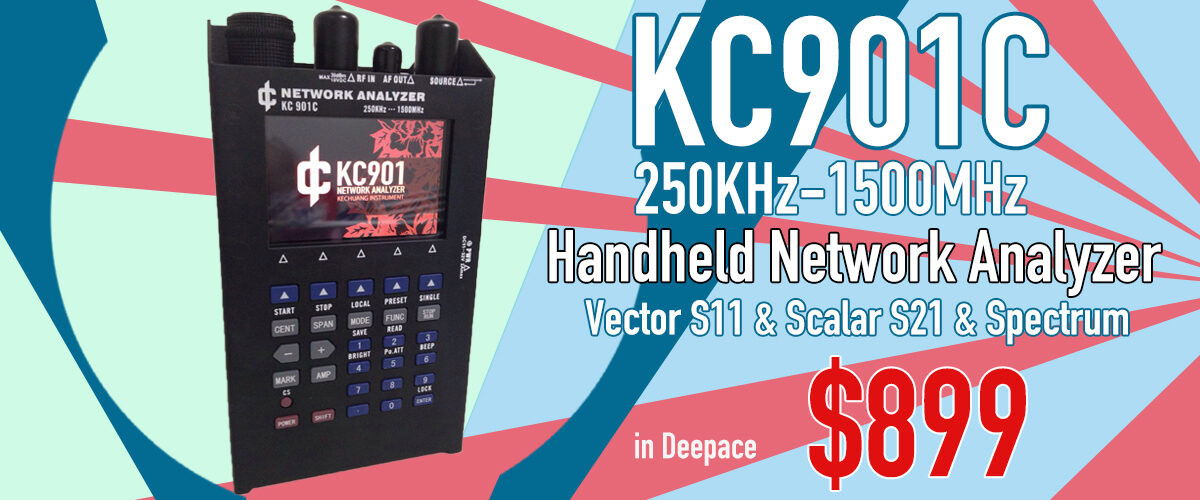

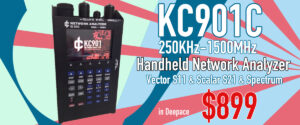

-Test frequencies up to 1.5GHz with 1Hz resolution and stability better than 1ppm.
-Vector measurement on S11 with 0.01° phase resolution and 0.01db amplitude resolution.
-With vector measurement capability of S11, it shows the smith chart, RL(Return loss), characters of phase position, and frequency.
-In S21 scalar measurement, it has the function of single frequency S21 within range of 100dB.*
-With its non-volatile calibration data built-in, on site calibration is not necessary if performing a qualitative measurement. While performing rigorous test, you may use the SOL to enhance the calibration.
-A handy field strengthen meter with a wide dynamic range.
-Built in DDS, audio signal source function.
-Data can be saved in the Memory Card or be transferred into PC via USB.
-3.5 inch color-display
-Excellent response speed with accurate key feeling, less than 3s ready to use.
-Functions are stable and reliable with the excellent hardware/software design.
* in accordance with Technical parameters
– Transmission test (tuning diplexer and filter, testing amplifier and inspecting the directivity of antennas)
– Vector reflection test (examining quality of antenna system and feeder system, a tracking receiver is used to improve the noise performance)
– Spectrum display and field strength detection (inspecting radio frequency emissions / searching interference sources)
