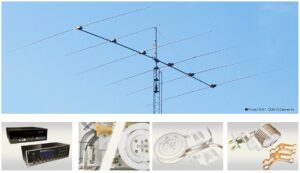

New Japanese prototype “StepIr” HF Beam with new design and technology.

Picture credit by Kohjinsha.jp
Click to pic enlarge

Click to pic enlarge

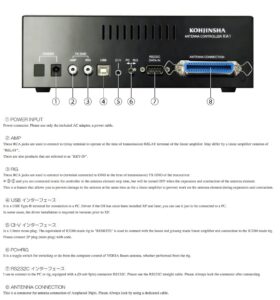

■ Controller Interface class
Power connector CI-V (3.5mm mono)
※ linear AMP (RCA)
※ PC ⇔ RIG (toggle)
※ transceiver (RCA)
※ USB (Type-B)
※ ANTENNA CONNECTION (Amphenol 36P)
※ RC232C (D-sub9pin)

■ Can be connected Brand
KOHJINSHA, KENWOOD, ICOM, YAESU other

■ Model name
[KOHJINSHA] KL-1
[KENWOOD] TS-990, TS-590, TS2000 other
[YAESU] FTDX-9000, FTDX-5000, FT-2000 other
[ICOM] IC7800, IC7700, IC-7600 other
[ELECRAFT] K2, K3

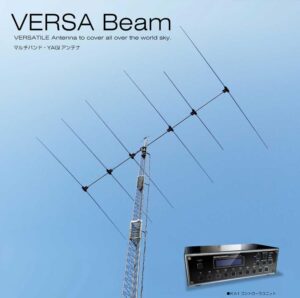

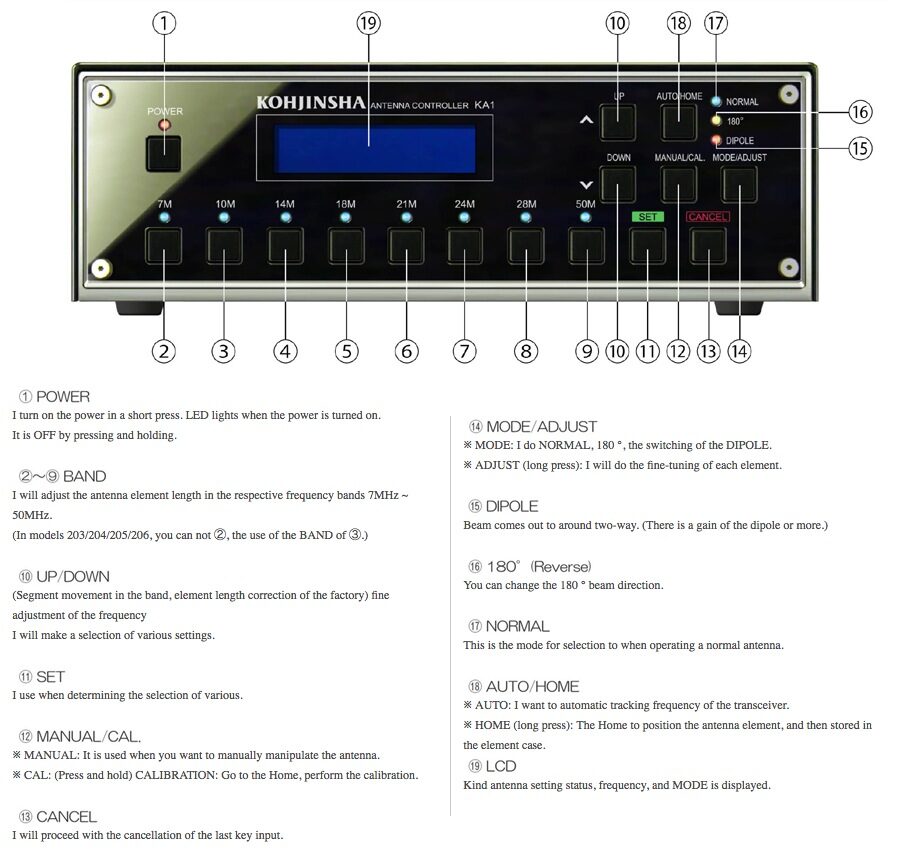

The Control Unit

Click to pic enlarge

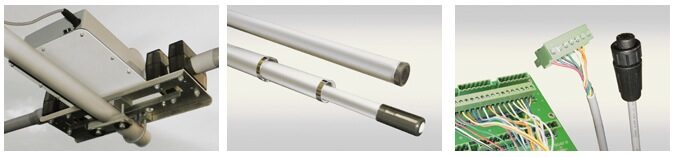

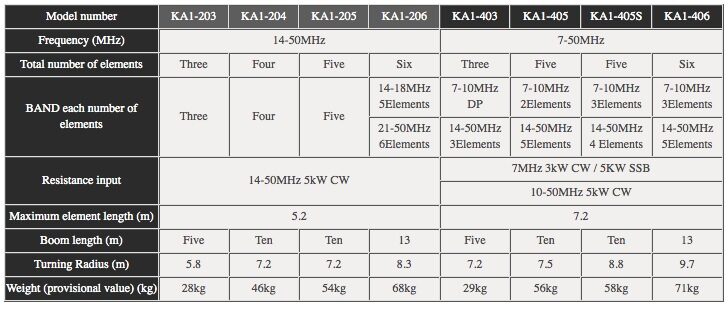

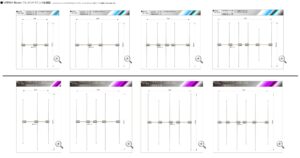

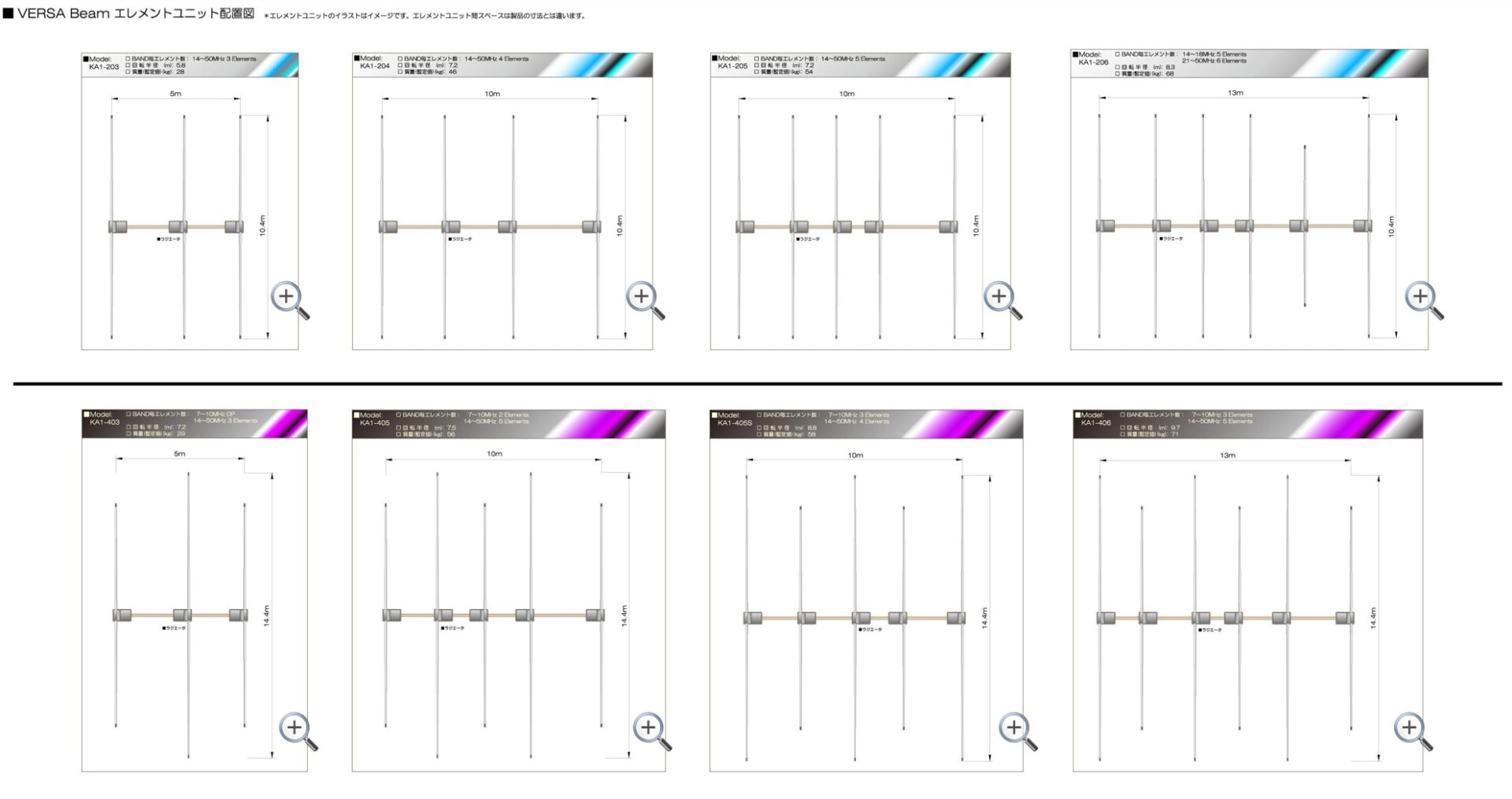

Antennas

• KA1-203 – 3 ele Yagi Beam (14-50 MHz 3 ele)
• KA1-204 – 4 ele Yagi Beam (14-50 MHz 4 ele)
• KA1-205 – 5 ele Yagi Beam (14-50 MHz 5 ele)
• KA1-206 – 6 ele Yagi Beam (14-18 MHz 5 ele / 21-50 MHz 6 ele)

• KA1-403 – 3 ele Yagi Beam (7-10 MHz Dipole / 14-50 MHz 3 ele)
• KA1-405 – 4 ele Yagi Beam (7-10 MHz  2 ele / 14-50 Mhz 5 ele)
• KA1-405S – 5 ele Yagi Beam (7-10 Mhz 3 ele / 14-50 4 ele)
• KA1-406 – 6 ele Yagi Beam (7-10 MHz 3 ele / 14-50 5 ele)

For more info please contact to Company directly : info@konjinsha.jp
