Add this full featured, 8-Channel, menu driven, flexible voting system to any wide-band repeater (does not work on narrow band).

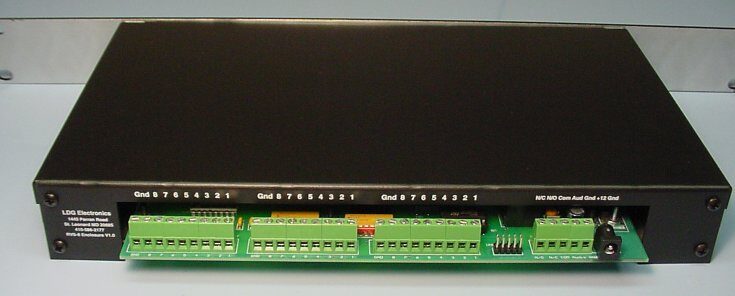

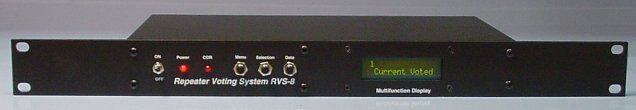

LDG Electronics Inc. has released an assembled and tested Repeater Voting System. The voter is based on the popular RVS-8 (from April 1999 QST) The RVS-8 is a full featured repeater voting system designed to work with today’s amateur and commercial repeaters. The voter features 8 channel capacity, menu driven display system, programmable logic states, on screen “signal to noise meter”, site activity logging and more.
Once installed, the RVS-8 provides signal to noise based, “real time” automatic audio switching for up to eight sites. Multiple RVS-8s can be cascaded to provide up to 64 channels of voting.
8 Channels (expandable)
True Signal-to-Noise Voting
Menu Driven, 10 Menus
Programmable COR and Disable Inputs
Digital S/N Meter
12 Volt Operation @500 ma (user supplies power source)
Board Size: 6 x 9 inches
Rack Size: 1 Rack unit, 7 inch depth
Enclosure size: 19 x 7.0 x 1.25 (measured in inches)
Note: This voter does not work on narrow-band systems.
