macdoppler

MacDoppler will provide any level of station automation you need from assisted Doppler Tuning and Antenna Pointing right on up to fully automated Satellite Gateway operation.

MacDoppler carries on the rich tradition pioneered by MacDopplerPRO which is in use around the world by Amateur Radio operators, satellite spotters, educators and commercial customers from CBS News to the International Space Station Amateur Radio Hardware Management program, Delta Telemetry Tracking and Control at Boeing Integrated Defense Systems, Florida State University, and the CalPoly CubeSat Project.

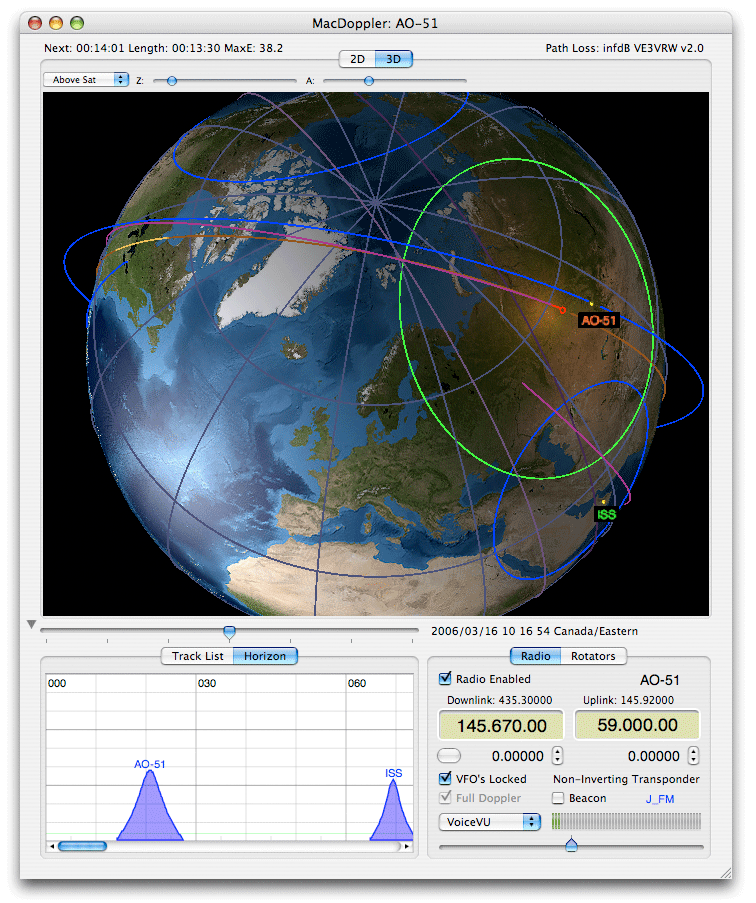

macdoppler1

Satellite Radios Supported:

YAESU FT-736R, FT-847
ICOM IC-970, IC-820, IC-821H, IC-910, IC-9100
Kenwood TS-790A, TS-2000

Non-Satellite Radios (limited support)

YAESU FT-817, FT-857, FT-897
Icom IC-7000
ICOM IC-R8500, and IC-PCR1000 Receivers
Kenwood TS-50
AOR AR-3000A Receiver

Note: A full duplex satellite radio like the TS-2000, FT-847, IC-910 or IC-9100 is recommended to take full advantage of MacDoppler’s capabilities.

Rotor Controllers Supported:

Yaesu G-5400B / G-5500 / GS-232, GS-232A, GS-232B
KLM/Mirage, SARtek, hy-gain DCU-1 Pathfinder
Endeavour AutoTracker
EasyCom I & EasyCom II
SatEL
AlfaSpid RAS
PrimeSat
Creative Design RAC825
G6LVB Tracker (GS-232 RS-232 & USB)
M2 2800

Download v2.15

Intel Only, OS X 10.6.8+.
Fixed $50SAT Modes editor bug.
Fixed 2D Map bug.
Import kep set when element set numbers do not match.

Link

Price:  Single User License, electronic download $98.00 USD.
