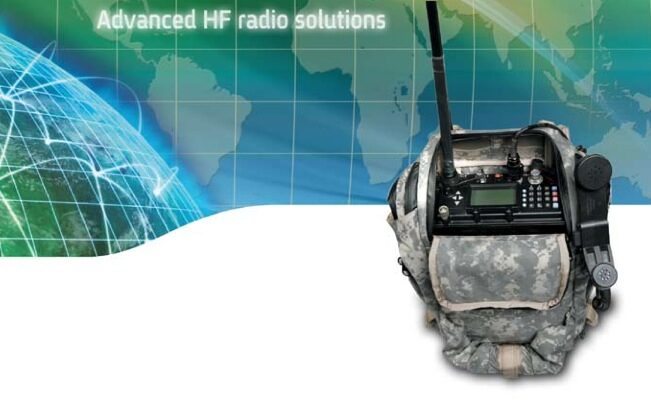

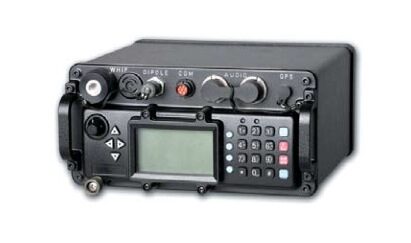

The Micom Pathfinder HF-SSB transceiver provides reliable long-range radio communications in a rugged and durable backpack configuration built to withstand severe shock, vibration and extreme weather conditions. The lightweight Homeland Security version of the Micom Pathfinder makes it especially suitable for users who carry out on-foot field operations.
The Micom Pathfinder backpack is equipped with a military-type handset and connectors, delivering superior qualities and performance in a cost-effective package priced to fit the needs of a wide range of organizations. Certified for dependability and durability, the Micom Pathfinder complies with US MIL-STD 810 and JITC-approved ALE per MIL-STD-188-141B standards.
General Specifications:
- Frequency range: 1.6–30 MHz
- JITC-approved embedded ALE per MIL-STD-188-141B
- Multinet operation (for ALE)
- 200 preset channels, Simplex or Half duplex
- Up to 1000 ALE net based channels
- Built-in Automatic antenna tuner
- Transmission: 25W PEP/AVG
- Reception: 100 KHz–30 MHz Rx
- Standby time: 15hrs
- Audio bandwidth: 350 to 2700 Hz
- Frequency stability: 0.6 PPM
- Frequency resolution: 10 Hz
- Operating temperature range:
- -30°C to +60°C/-22°F to +140°F
- Shock and vibration: 810F + E
- Immersion: 1 meter of water for one hour
- Dimensions H X W X D: 110 x 222 x 220mm
- Weight: 3.6 Kg (Without battery)
Options:
- PC Control and programming kit
- 0.1 PPM high frequency stability
- Internal Vocoder voice enhancement
- Digital AES Vocoder Encryption (NIST-certified)
- Internal Modem with optional AES encryption
Price: TBD
