This high ruggedness device, MRF1K50H, is designed for use in high VSWR industrial, scientific and medical applications, as well as radio and VHF TV broadcast, sub-GHz aerospace and mobile radio applications. Its unmatched input and output design allows for wide frequency range use from 1.8 to 500 MHz.
Frequency Min (Min) (MHz) 1.8
Frequency Max (Max) (MHz) 500
Supply Voltage (Typ) (V) 50
P1dB (Typ) (dBm) 61.8
P1dB (Typ) (W) 1500
Output Power (Typ) (W) @ Intermodulation Level at Test Signal 1500 @ Peak
Test Signal Pulse
Power Gain (Typ) (dB) @ f (MHz) 23.7 @ 230
Efficiency (Typ) (%) 74
Thermal Resistance (Spec)(°C/W) 0.12
Die Technology LDMOS

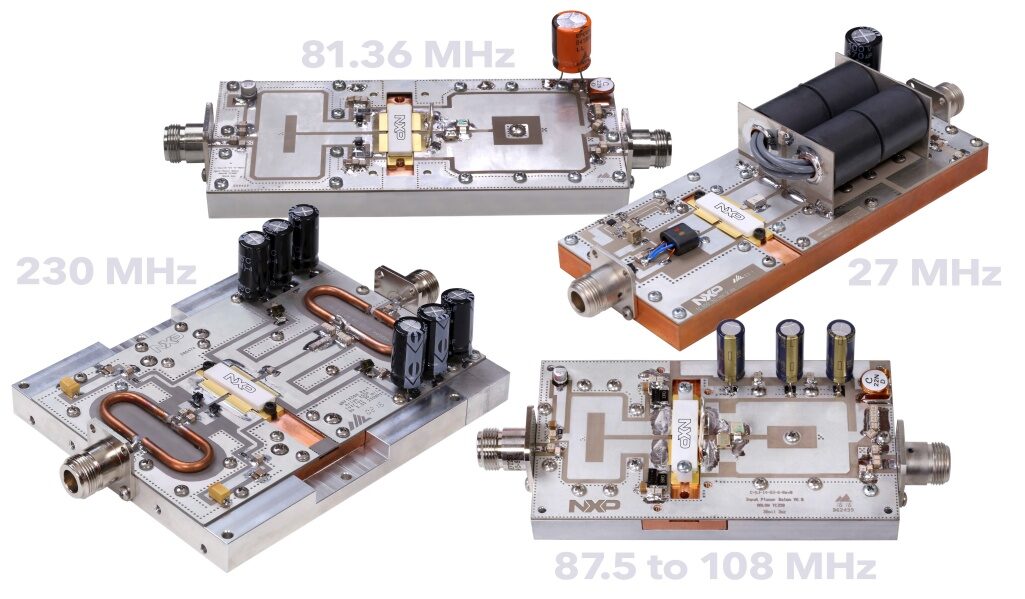

27 CW 1550 CW 25.9 78.3
81.36(1) CW 1400 CW 23.0 75.0
87.5-108(2,3) CW 1475 CW 23.3 83.4
(100 µsec, 20% Duty Cycle) 1500 Peak 23.7 74.0
1. Data from 81.36 MHz narrowband reference circuit.
2. Data from 87.5-108 MHz broadband reference circuit.
3. The values shown are the center band performance numbers across the indicated frequency range.
4. Data from 230 MHz narrowband production test fixture.
High Drain-source Avalanche Energy Absorption Capability
Unmatched Input and Output
Device Can Be Used Single-Ended or in a Push-Pull Configuration
Characterized from 30 to 50 V
High Rugggedness. Handles 65:1 VSWR.
Recommended Driver: MRFE6VS25N (25 W)
Lower Thermal Resistance Part Available: MRF1K50N
This product is included in our product longevity program with assured supply for a minimum of 15 years after launch.
Industrial, Scientific, Medical (ISM)
MRI, diathermy, skin laser and ablation
Industrial heating, welding and drying systems
VHF TV broadcast
VHF omnidirectional range (VOR) HF and VHF communications
VHF and UHF base stations
