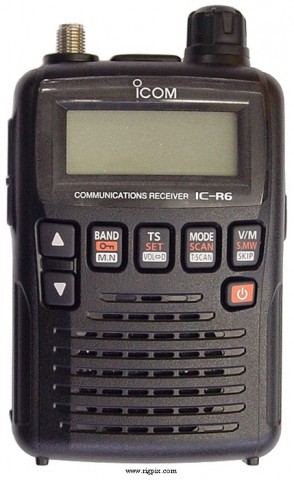

Type: HF/VHF/UHF receiver/scanner
Frequency range: 0.100-1310 MHz (Cellular blocked in the USA)
(5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 20 / 25 / 30 / 50 / 100 / 125 / 200 KHz steps)
Receiver system: Triple conversion superheterodyne
1st IF: 266.7 MHz
2nd IF: 19.65 MHz (AM/FM), 19.95 MHz (WFM)
3rd IF: 450 KHz (AM/FM), 750 KHz (WFM)
Selectivity: AM/FM 12 KHz (-9 dB), 30 KHz (-60 dB)
WFM 150 KHz (-6 dB)
Image rejection: N/A
Voltage: 2.4-3 VDC (2*R6/AA) or 4.5-6.3 VDC external
Current drain: 30-130 mA
Impedance: 50 ohms, SMA
Dimensions (W*H*D): 58*86*30 mm
Weight: 200 gr (With antenna and batteries)
Manufactured: Japan, 2010-20xx
Other: 1350 memories. Ferrite bar antenna for MW. VSC
CTCSS & DTCS. PC-programmable via USB
