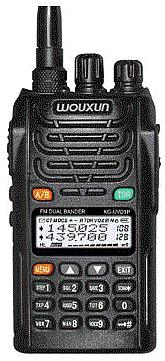

The Wouxun KG-UVD1P is an affordable handheld radio for 2m and 70cm. Despite the remarkable low price the radio is professionally manufactured and has a rich set of accessories. The clear and bright LC display shows two frequencies at the same time. Operation is possible with each VFO in the same band (V/V, U/U, V/U). Instead of the frequency an alphanumeric name can be displayed. The output power is 5W on 2m and 4W on 70cm, low power is selectable to 1W on each band.
The frequency range is 144-148 and 430-440 MHz (Tx/Rx) and can be extended by software to 138 – 174 and 400 to 470 MHz. Additionally a WFM receiver works on 87 to 108 MHz. The KG-UVD1P has 128 memories. The keypad acts also as a DTMGF encoder, for example to use Echolink. A 1750Hz call tone is also available. When using the keypad an english voice announcement supports the user, this is a helpful feature for visually handicapped operators.
Steps: 5, 6.25, 10, 12.5, 20 and 25 kHz
FM bandwidth selectable (12.5/25kHz)
Scan functions with priority watch
Low battery voltage is annoucned by voice and signalled by a blinking LED
Bright, white bakclit LC display
Roger beep at start and end of transmission (selectable)
105 DCS and 50 CTCSS tones Encoder/Decoder
TX Power selectable 5W (4W) / 1W
Repeater shift programmable ± 0 – 69.950 MHz
Call tone 1750 Hz
PRICE ~ 113 EU
