The AT4K is the tuner that built Palstar’s reputation for high-quality and “Built-Like-A-Tank” durability. Unwilling to rest on our laurels, we decided that we could go one better. The AT5K takes power handling to the next level over the AT4K, coming in with a rating of 3500 watts single tone continuous performance with low losses & wide Z range. Bands coverage is 160m to 15m with limited Z range on 10m. The AT5K provides balanced OUTPUT with high power 5kW TEFLON cable balun at the INPUT of the tuner circuit for excellent balanced feed antenna operation.
“It’s built like a TANK!” – K0CWO, CW4 BJ Voute, U. S. Army
The American made AT5K is a unique high-power tuner in the American Ham tradition. This tuner has been nick-named the “Rock Crusher” and is fast becoming the tuner of choice among Hams who demand the best and most robust antenna tuner on the market.
The typical unbalanced tuner with a 4:1 balun at the OUTPUT exposes the balun to a wide variety of impedance and reactance that it was never designed to handle. Palstar’s AT5K, like its AT4K little brother, has a T-matching network utilizing a 1:1 unbalanced-to-balanced transformer at the INPUT of the network. When the network is properly tuned, a 50 Ohm impedance will be presented both to the input and output of the balun, which allows it to properly perform its important transformation job.

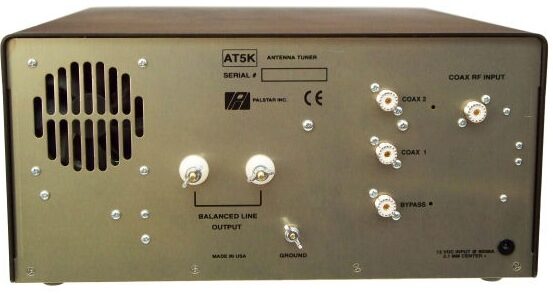

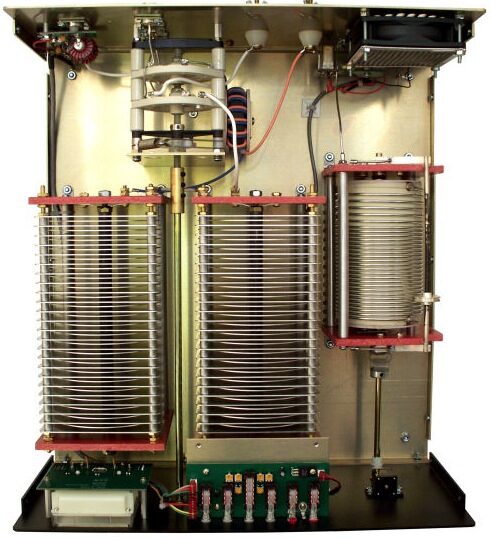

Inside the AT5K you’ll find massive custom large-plate (600 pF) variable capacitors rated at 6 kV. This high capacitance means unsurpassed performance on 160 Meters, while specially designed non-metallic end plates allow a minimum capacitance of only 23 pF for 10 Meter tuning, unusually low for a variable capacitor this large. Equally massive is the 35 ?H, 10 Amp, 7 kV, Ceramic-body inductor, which is wound with 10 Ga. plated copper wire with silver-plated wheel shaft and contact wheel, .
Also, Palstar engineering has incorporated the technology found in our popular PM2000A wattmeter into this tuner to provide dual cross-needle metering with active peak and peak hold ($149.95 value).
3500 Watts single tone, low tuner losses and wide Z range
160m to 15m with limited Z range on 10m
Balanced OUTPUT with high power 5 kW TEFLON wire balun at the INPUT of tuner circuit
Custom, large plate variable capacitors (600pF @ 6 kV)
10 Amp 7 kV CERAMIC 3.25″ body roller inductor (35 ?H) wound with 10 Ga. plated solid copper wire
Silver plated wheel shaft and contact wheel
Six-position switchable antenna input switch with 7 kV, 10 Amp contacts
Ferrite 1:1 input balun
Peak and Peak Hold dual cross-needle metering (1-2 sec hold) with backlighting
Chassis and top cover are 11 Ga. (.090″) aluminium iridite coated and top cover is powder coat finished
Fan cooling for extended 100% duty cycle operation
(For US Domestic/Canada)Power Connector and Power Cable Supplied
Dimensions: 16 1/4″ wide x 8 1/4″ high x 19 3/4″deep (including knobs and connectors)
Weight: 30 lbs
