Fast raising and lowering, comfortable Masts for antennas and other payloads (e.g. Floodlights, Cameras, Anemometer, Microphones etc.).

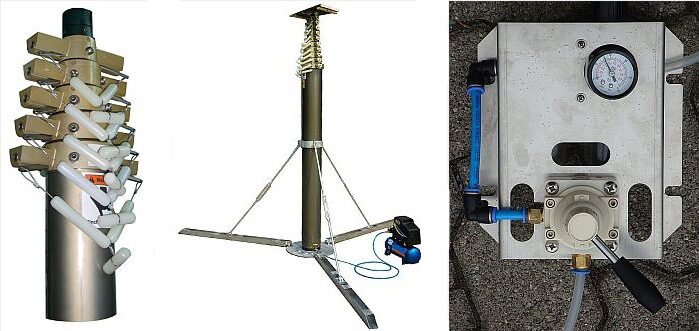

These masts are made of concentric sections of anodized aluminum, equipped with a lock against rotation. The top section is terminated with a large flange which allows installation of various payloads. The functional principle is the reverse of an air pump for your bicycle: if you put pressurized air into the nozzle of the pump, the handle extends due to the internal pressure.
The compressor required to extend the mast is not included in shipment; but you can use any other existing compressor our source of pressurized air as well (e.g. the pressurized air of a truck brake).
The mast is operated (extended or lowered) by a three-position valve: Raise/Hold/Lower.
When one section of the mast is fully extended it locks into the next section. This locking ensures that the mast is held extended even when the pressurized air is removed. The mast can even be locked in different heights by not extending all sections. To lower the mast just pull the release handle on the lowest section, the uppersections will lower themselves gently. Then pull the handle of the next section ow in reach, lower this, and so on…
For installation on level surfaces the mast comes equipped with a solid tripod. This tripod allows adjustments for slopes with some inclination. This tripod must be fixed to ground, even for masts marked as “self supporting, no guying required”. Alternatively mast clamps for installation on a wall or vehicle are available.

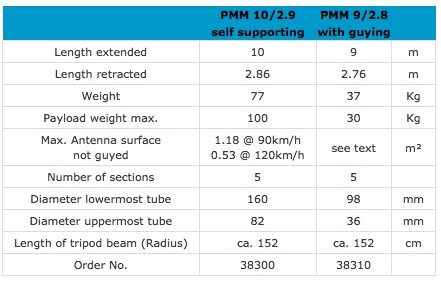

Currently we offer two different models.
The lighter model is intended to be used with guy wires. The max. allowed wind load cannot be specified on this model, because that’s depending on the type of guying.
The technical data for model PMM 10/2.9 is valid for self supporting installation (no guying). Calculating with a wind speed of 120km/h a bending of up to 66cm is to be expected. So it is recommend to use guying with this mast as well, which would also increase tha maximum allowed payload surface.
