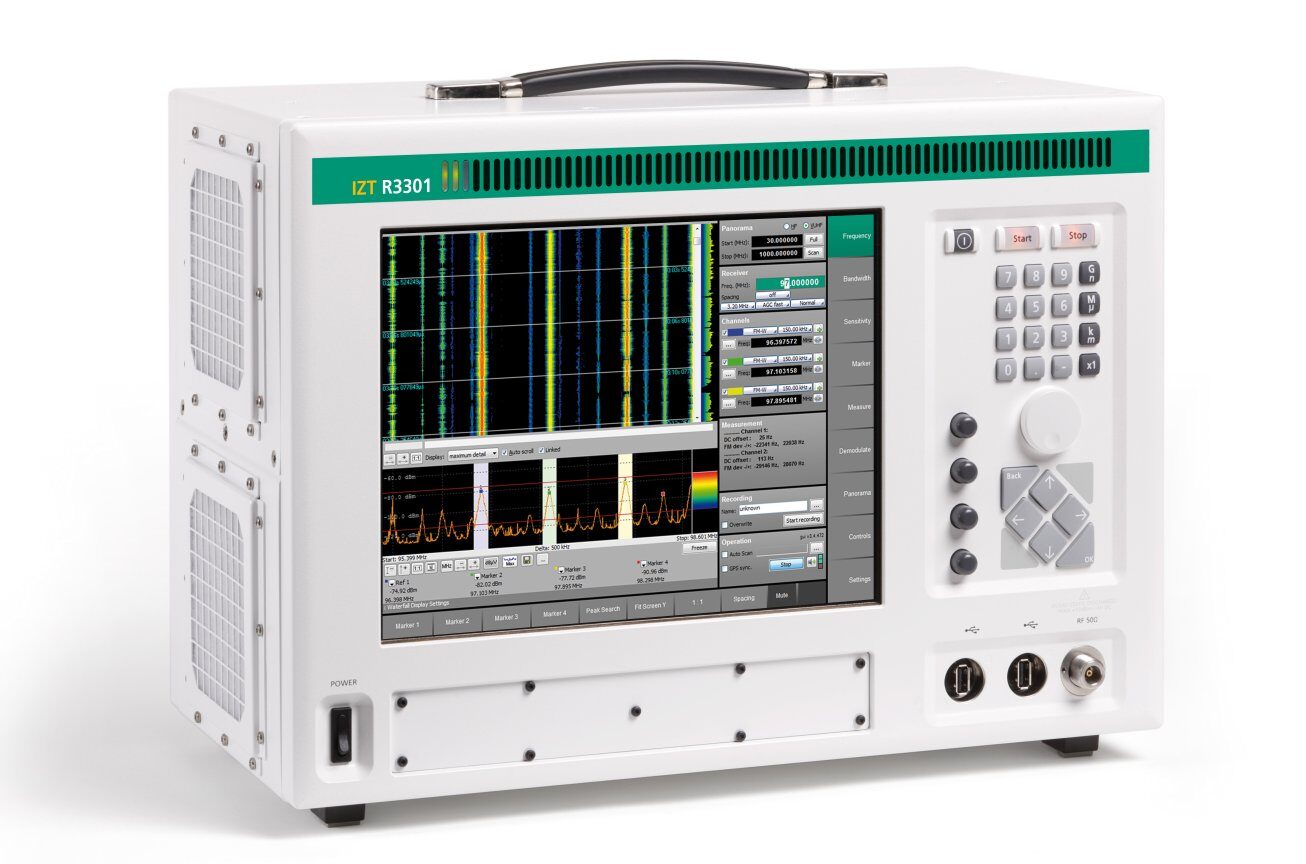

The IZT R3301 is a portable receiver with an integrated server for data recording. The receiver is optimized for recoding of RF signals in frequently changing environments. The RF characteristics of the IZT R3301 are identical to the IZT R3000 series.
portable HF-VUHF-SHF receiver
frequency 9 kHz – 3 GHz (3 – 18 GHz optional)
continuous recording of 20 MHz RF bandwidth
integrated 2 TB RAID storage and GPS receiver
compact and rugged design for mobile use
extremely low RF emissions
The IZT R3301 supports advanced IZT applications:
TDOA location ?nding
Wideband Record & Replay system IZT RecPlay
The IZT R3301 is the preferred means for recording RF signals in the field. It uses
IZT’s renowned R3000 digital receiver integrated into a portable RF recorder.
Two Terabytes of storage space can record up to 20 MHz bandwidth over six hours with 16 Bit resolution. Multiple narrow band channels can be recorded as well.
The equipment is shielded for minimum RF emissions and optimized for operation onboard a vehicle or aircraft.
Should it be necessary to capture signals from a DF antenna, multiple IZT R3301 can be fully phase synchronized.
