This small regulated switching power supply features 2 Powerpole outputs in front and 1/4″ binding posts in rear. Machined metal front bezel with illuminated power switch. DC output voltage 13.85V at 25A continuous, 30A surge. Small 6x5x2.5″ footprint.
The Powerwerx Switching Power Supply Model SS-30DV which is designed to supply 25 Amps continuous and 30 Amps surge (up to 5 minutes) at 13.85 VDC. Loads can be connected to either the rear binding posts or the front Powerpole connectors. Any output may provide up to 30 Amps individually, and the total output is limited at 30 Amps.

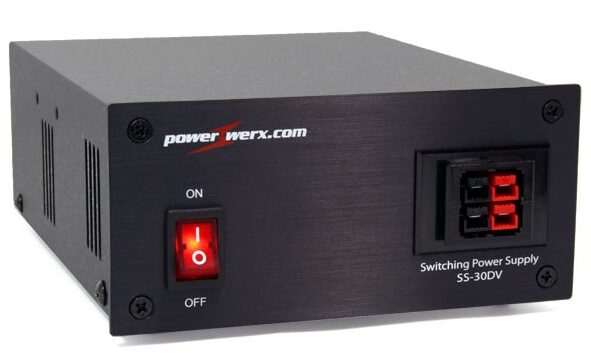

Front Connection: 2 sets of Powerpole connectors

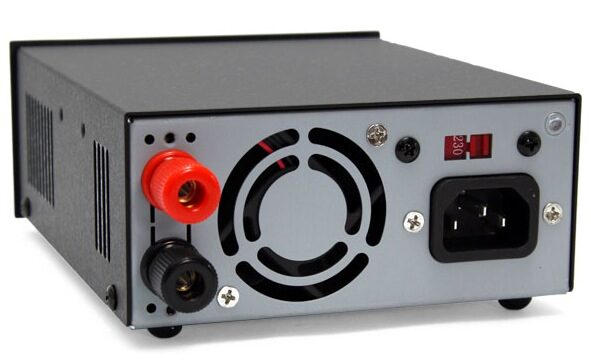

Rear Connection: 1/4 inch binding posts that also accept banana plugs, 1/4 inch ring terminals or compression connections
Illuminated Power Switch
Specifications Electrical specifications:
Input Range: 100-120 VAC or 200-240 VAC, 50/60Hz (Switchable) New!
Output Voltage: 13.85 VDC fixed
Output Amperage: 25 continuous, 30 surge
Internal Protection: Thermal, over current
Internal Input Fuse: 6.3 Amps at 115 VAC
Ripple Peak-to-Peak Max. Noise Peak-to-Peak Max. Operating temperature rating: 0 – 50 °C
Storage temperature: -20 – 85 °C
Physical dimensions and materials:
Weight: 3.0 lbs. (48 oz.)
Overall Dimensions: 6.1 x 5 x 2.5 in (154mm long, 127mm wide, 63mm tall)
Fan: Quiet internal cooling fan
Machined metal case front bezel
Meets FCC CFR Title 47 Part 15 Subpart B: Class B, CISPR: 2005 ANSI C63.4: 2003
Meets CE/LVD (Low-Voltage Directive 2006/95/EC) standard
Meets EMC: EN 55022:206+A1: 2007, 2010, EN 61000-3-2:2006
The Powerpole connectors mounted on the front panel conform to the RACES/ARES standard orientation.
Input Voltage Selection
The power supply is set up for 230V AC input as shipped from the factory. For 115V AC applications, set the recessed 115/230 input select switch located on the rear of the power supply into the proper position. Positions are identified on the switch. Use a small screwdriver to slide the switch into position. No adjustment is necessary for either 50 or 60 Hz input.
Land mobile radio base stations
Automotive & marine systems
12 Volt lighting systems
AC Power Cord, 4 ft.
Unplug the power supply from the mains supply outlet.
Select the correct input voltage (See Input Voltage Selection).
Connect the power cable’s positive (red) wire to the positive terminal and connect the negative (black) wire to the negative terminal on the back of the power supply or use the Powerpole connectors mounted on the front panel.
Plug the power cable into the power socket on the back of the radio.
Plug the power supply into the mains supply outlet.
Turning the power supply on
Turn the power supply on by pressing the power switch to the ‘ON’ Position.
Turning the power supply off
Before you turn the power supply off, turn the radio off as described in the user documentation for the radio. Then turn the power supply off by pressing the power switch to the ‘OFF’ Position.
The SS-30DV power supply is cooled by convection and forced air cooling (normal airflow around the power supply in combination with a temperature controlled fan to improve cooling at higher levels of use). The fan is activated by a sensor when the temperature rises above 70°C.
