SPECIFICATIONS:
| Frequency Coverage |
25-54, 108-136.99166, 137-174, 216.0025-512, 764-781.996875, 791-796-996875, 806-960 (excluding cellular bands), 1240-1300 MHz |
|
| Receive mode |
AM, FM, NFM, P25, MOT, EDACS, LTR, CTCSS, DCS |
|
| Frequency step |
3.125, 5, 6.25, 7.5, 8.33, 10, 12.5, 25 kHz |
|
| Selectivity |
AM 25-27.995 MHz: |
|
| 4 kHz / 6 kHz (-6 dB / -50 dB) | ||
| Other frequency and modulation: | ||
| 7 kHz / 13 kHz (-6 dB / -50 dB) | ||
| Scanning Rate |
Up to 70 channels/second |
|
| Search Rate |
Up to 80 steps/second |
|
| Receiving system |
Trip conversion PLL synthesize super-heterodyne |
|
| Antenna Impedance |
50 ohms |
|
| Audio Output |
500 mW (Max. Power) |
|
| Power requirement |
4AA Batteries or USB 5V DC |
|
| Current drain |
170 mA nominal (Squelched) at 5V DC |
|
| Operating temperature |
14 to 140 deg. F (-10 to 60 deg. C) |
|
| Dimension (HWD) |
5 5/16 x 2 1/8 x 1 1/16 inches (135 x 67 x 28 mm) |
|
| Weight |
Approx. 7.4 oz (210 g) |
|
| Included Accessories |
USB Data Cable, Antenna, 2GB MicroSD Memory card, Rotating belt clip, CD-Rom Media |
|
| FEATURES | ||

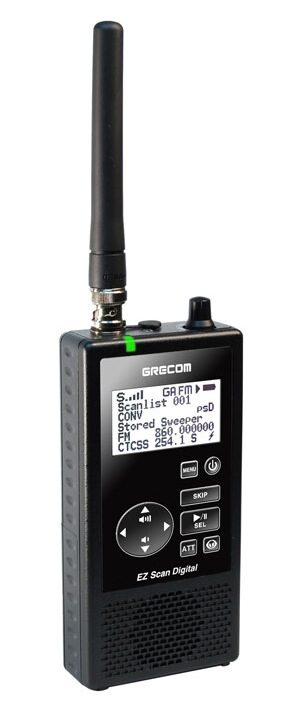

Easy to understand Media Player User Interface – The simplified keypad and display with familiar Play, Pause and Navigation controls make EZ Scan Digital intuitive to use. |
||
Complete USA Database on a MicroSD Card – The entire USA database is stored on a MicroSD Card included with the EZ Scan Digital, giving the user the most comprehensive radio data available…all without connecting EZ Scan Digital to a computer or Internet a GRE First!. |
||
Upgradeable CPU Firmware and Library – Keep EZ Scan Digital current with the enhancements and updates as they become available through provided PC Software Application |
||
Powerful PC Software Application – Modify or add your own Scanlist with the easy to us EZ Scan Digital software application. |
||
SKYWARN Storm Spotter Functionality – Instant access to frequencies used by storm spotter networks. Monitor storm conditions as they occur, and learn about dangerous conditions before the media or emergency management officials announce them to the general public. |
||
SAME and All Hazards Weather Alerting –EZ Scan Digital features a Dedicated SAME Weather Alert Receiver mode, alerting users to severe weather and other hazards in the specific area(s) that they select. EZ Scan Digital can check local NOAA weather frequencies periodically, even while scanning, and provide an alert when an All Hazards alert occurs. |
||
Multi-System Digital and Analog Trunking – Scans digital and analog trunked radio system signaling formats, including Project-25, Motorola Type I/II/Hybrid, EDACS, and LTR systems. |
||
Powerful Spectrum Sweeper – Quickly sweeps EZ Scan Digital’s frequency ranges for transmissions from nearby sources. When a nearby transmission is found, EZ Scan Digital automatically tunes to that frequency and receives the transmission. |
||
Built-in Service Searches – Predefined service search ranges makes it easy to fine activity in your area. |
||
Audible alarms – Programmable alarms can be configured to sound when certain frequencies are active. |
||
Signal Strength Meter – Shows relative strength of received signals |
||
Slim, compact case design with larger speaker – Designed for one-handed operation and portability. |
[Download Data Sheet] [Download Users Manual]
Retail Price: $499.99 USD
