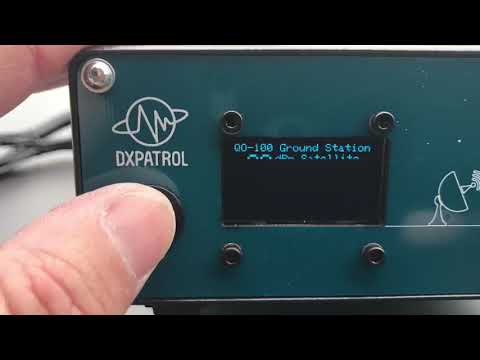

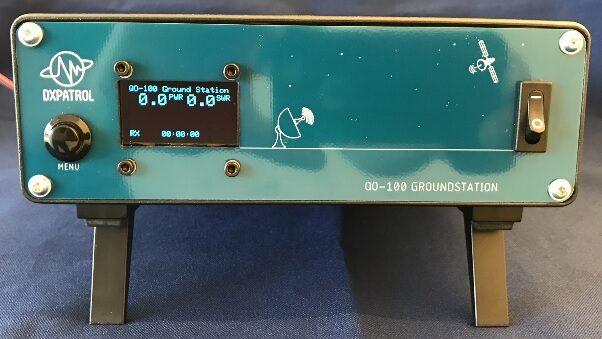

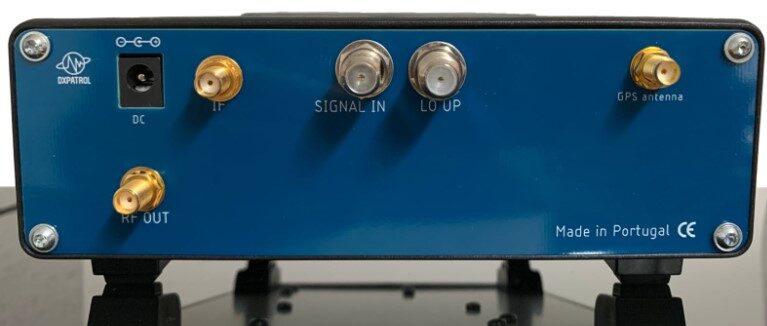

DXPatrol Ground Station for QO-100 Satellite.
- Reception frequency 10 489.500 to 10 490.000MHz
- Transmission Frequency 2400.000 to 2400.500 MHz
- IF Frequency 432.500 to 433.000 Mhz
- Linear UP and Down Converter
- GPS Lock internal 10Mhz reference
- Maximum Output RF Power 12W
- Maximum input RF 5W ( 500mW optimum drive)
- Input Voltage 12V to 14V
- Thermal > 60º C protection
- SWR > 1:3 protection
- High Voltage input protection
- Satellite Strength signal indication
- Power output Bar and Watt indication
- SWR Bar and ratio indication
- Internal 5A fuse protection
- NMEA GPS indication
- Number of GPS satellites in range
- GPS coordinates
- QTH Locator presentation on screen
- UTC Clock and Date.
- Auto TX and RX by Vox PTT
- Easy operation.
- No tune require from TX to RX
Estimate Price: 650 EU / With Helix Antenna 700 EU.
