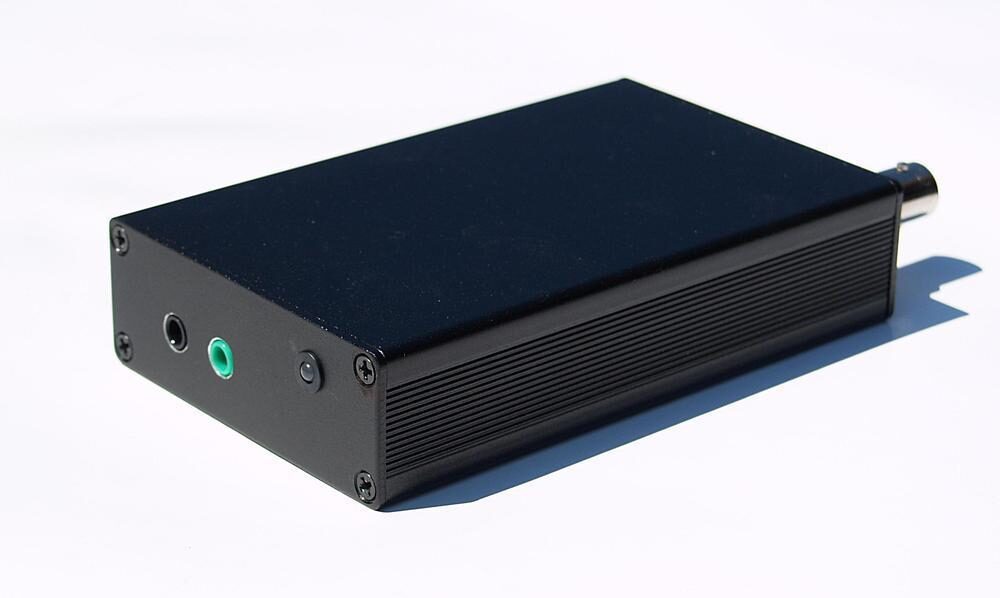

This is the SINGLE BAND , ONE frequency JT65 / PSK / BPSK QRP Transceiver.

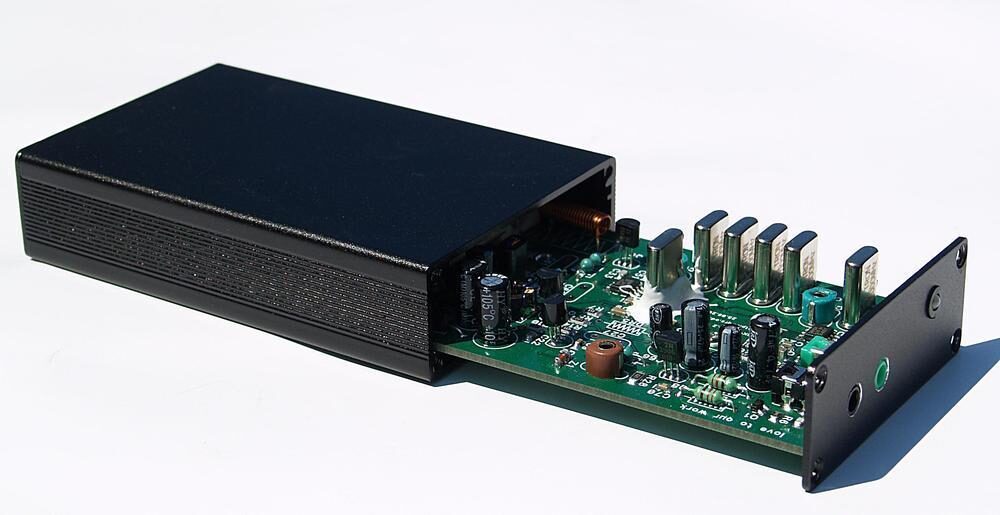

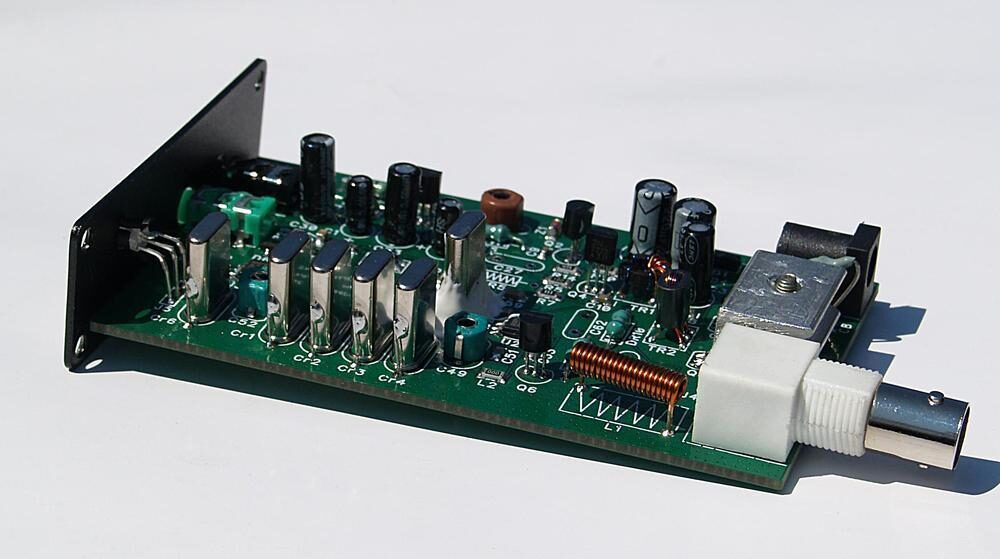

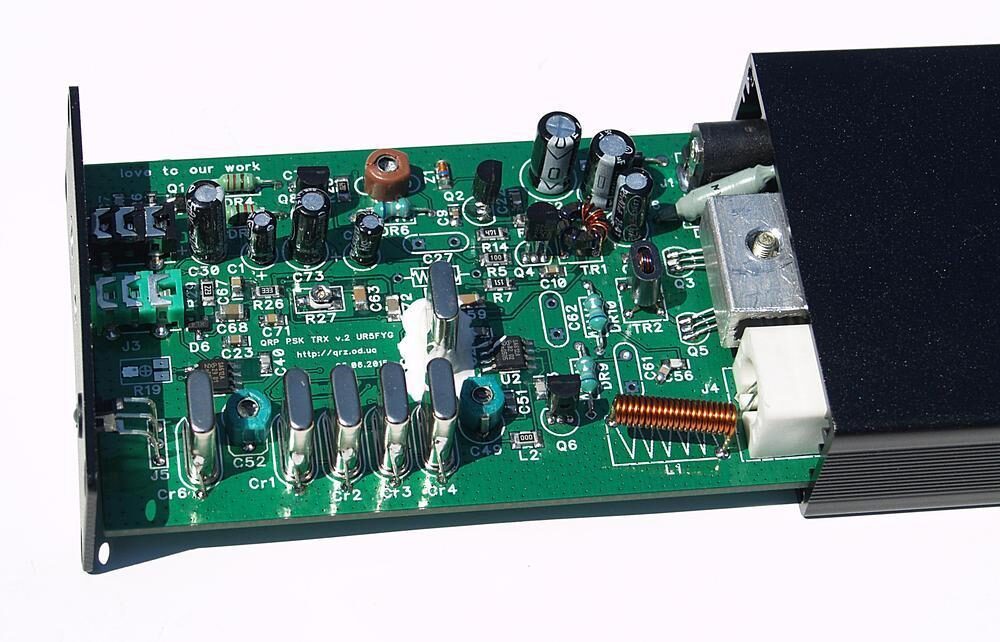

This small size QRP transceiver has about 1 Watts output power built on the superheterodyne principle with the crystal single frequency oscillator and one IF stage with FOUR pole crystal IF filter.
We are producing these transceivers on ONE of these frequencies:
JT65 frequencies – 7.076 / 14.076 / 21.076 Mhz.
PSK frequencies – 7.040 / 7.070 / 10.148 / 14.070 / 21.070 Mhz and other 7.102/7.104/7.106…
It is very simple to use this transceiver. To connect it to your PC sound card by common audio cable. Then connect it to the power supply and it is ready to work. There is the AUDIO VOX built in this transceiver so NO PTT switching is necessary.
Available JT65 frequencies – 7.076 / 14.076 / 21.076 Mhz
Power Supply Requirement – 14.2V DC (negative ground)
Power Consumption – RX 0.02A / TX 0.25 … 0.4A
PTT Control – NO PTT Control (built-in audio VOX)
Audio Connectors – 3.5 mm audio jacks
Antenna Connector – BNC
Dimensions (mm) – 100 x 65 x 35
Weight – 0.2 kg
Includes power cord length of 60 cm. With plug 5mm.
You can use any computer, laptop, netbook, tablet or smartphone.
As well as any software that you need to work in digital communication (eg fidigi or droid psk) this kind of software is quite a lot on the Internet.
