Power, Watts, ICAS 5,000 at 30Mhz
Losses, db 0,05 at 30MHz
Cross talk, db more then – 50db to unused port

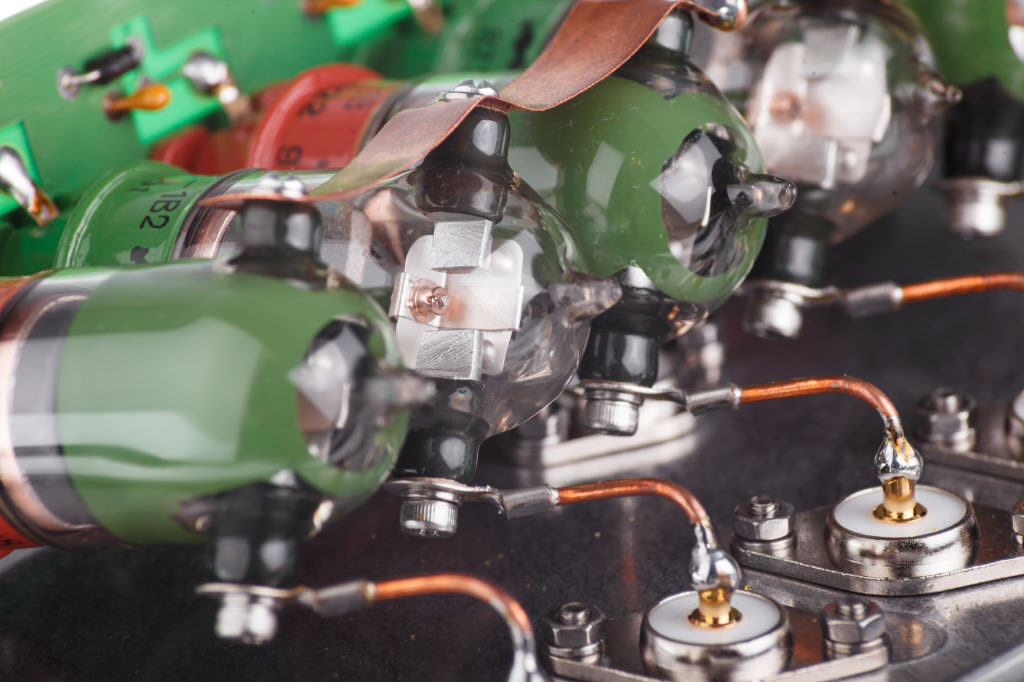

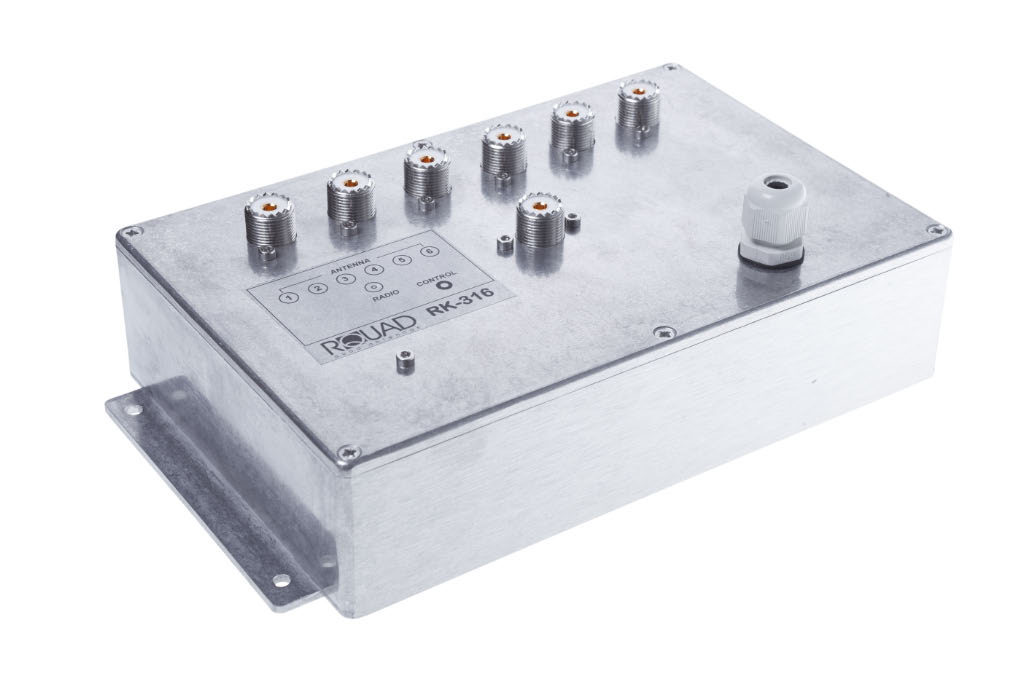

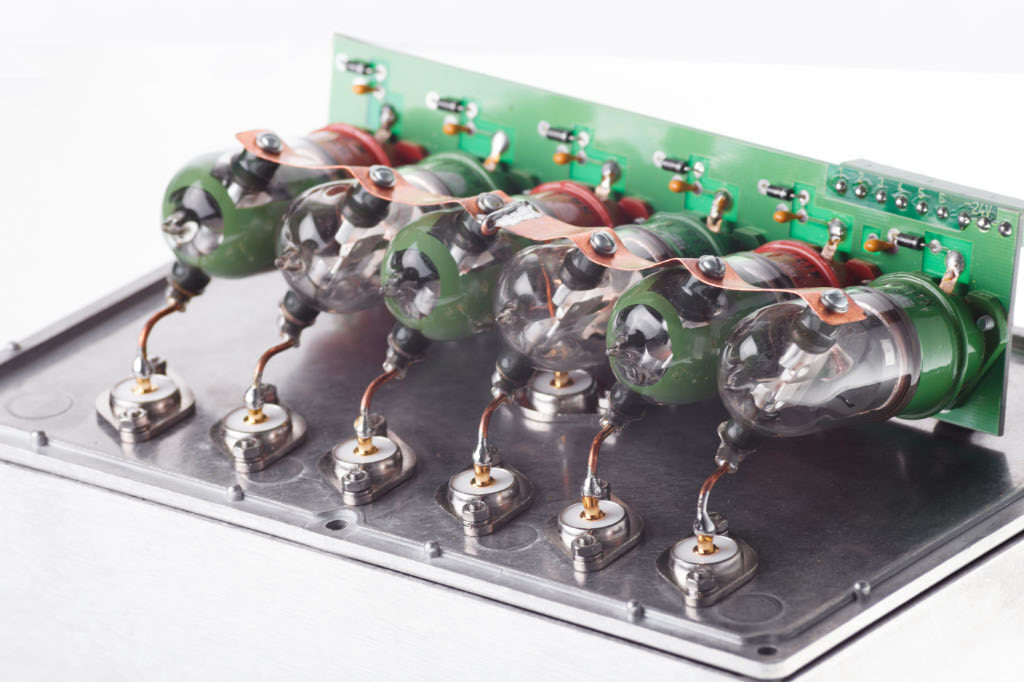

The RK-3xx series of switches uses vacuum relays.
It is designed to switch coaxial lines in RF systems
operating up to 5 kW continuous duty.
• Port Isolation (Worst Case): 55 dB
• Power Rating ( • Control Voltage: 27 Vdc/100 mA
• Loss (HP): • Loss (SD): • Impedance: 50 Ω
• 24 or 12-volt relay operation
• Control Line: x-wire plus ground
• Usable to 150 MHz
• Fully RF-shielded with Al cover
