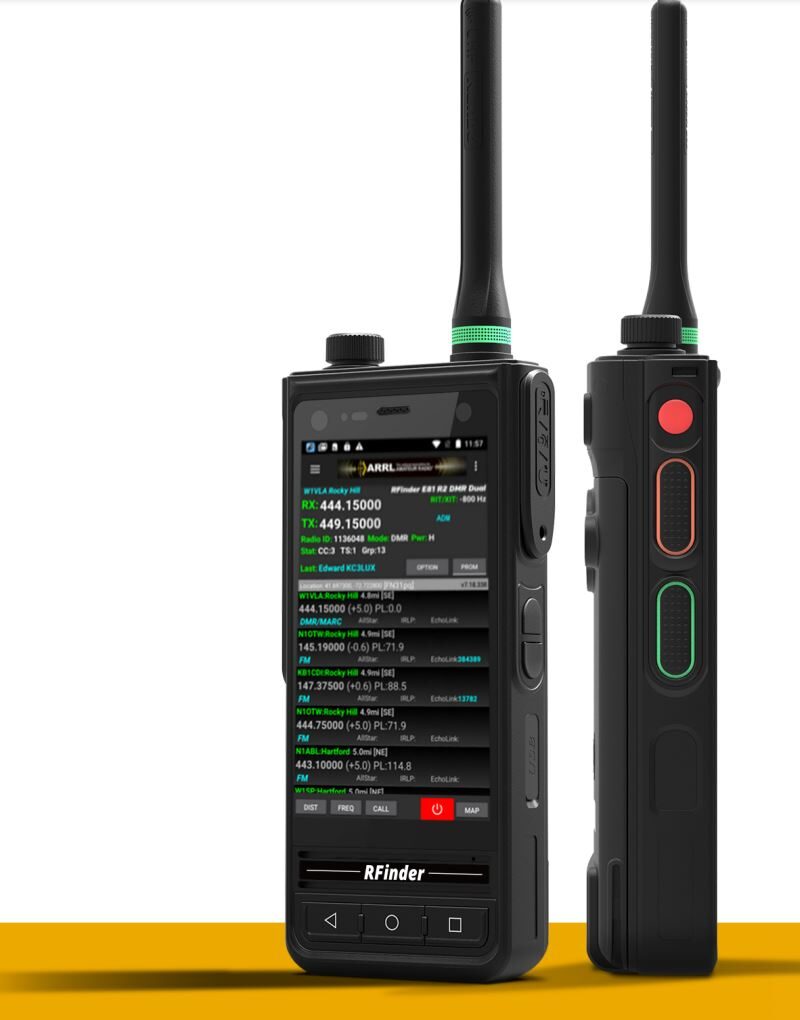

RFinder LLC B1-Plus

B1-Plus Specifications:

• Radio: 136-174, 400-490Mhz, FM Wide/Narrow, DMR Tier II
• Suitable Industry: Amateur Radio

Features:

• HT Transceiver: 4Watts DMR+Analog, VHF / UHF
• Selling Points: LTE 4G smartphone,IP67 rugged,PTT:DMR+UHF/DMR+VHF(optional),POC
• Display: 4.0 inch
• Touch Panel: 5 points capacitive screen,support rainwater operation,IPS.
• Resolution: 640 X 1136 Pixels TFT LCM
• Sim: Dual SIM,Dual standby ,the third SIM card for private network(Optional)
• Network: GSM, WCDMA, EVDO,TD-SCDMA,TDD/FDD-LTE
• Band:
  • 2G GSM850/900/1800/1900;3G:WCDMA850/900/1900/2100
  • LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B17/B20
  • LTE-TDD:B38/B39/B40/B41
• OS: Android 9.0
• CPU: MTK6765, Octa Core, 2.3GHz
• Memory: 4GB RAM + 64GB ROM
• Micro SD Card: Support up to 128GB
• Battery: 2500mAh @ 7.4V (Standard)
• Color: Black
• Size: 148 x 64 x 30.3mm
• Weight: 430g
• SOS: Yes
• Channel Knob: Yes And Easy To Operate
• PTT: Optional, Push-to-Talk Over Two Way Radio
• POC: Yes, Push-to-Talk over Cellular/Wifi
• Programmable Key: Support,Customer Can Customize The Shortcut Key For Special Function By Software
• GNSS: GPS/BEIDOU/GLONASS
• Charging Dock: Yes
• Quick Charge: Supports 2A Quick Charge from Internal USB Port
• Belt Clip: Yes
• Internal Microphone: Yes, Dual Mic To Anti Noise
• IP Class: IP67
• Sensors: Gravity, Gyro, Distance Sensor, Light Sensor, 3D Accelerator, Pressure Sensor
• FM: Yes
• NFC: Optional, 13.56MHZ
• Speaker: 2 Watts
• Others: RoIP DMR enabled, In Development
• Camera: Front camera:5mega pixels / Rear camera:13mega pixels
• Picture Size: Up To 4096 X 3072 Pixels
• Flash LED/Torch: 1 Flash LED, 200 Lumina
• Video Record: 1920 X 1080 Recording,30fps
• External Camera: Supported, Optional
• External Hand Mic: Supported, Optional
• Data
• WLAN: WIFI 802.11 a/b/g/n, 2.4G/5.8G
• Data Port: USB 2.0
• USB Port: 20 Pin Multiple Port / 2A Charge Supports OTG
• OTG: Supported
• Bluetooth: BT4.0

Standard Accessories:

• Battery: 2500mAh@7.4V (Standard)
• Dual Band Antenna
• Data Cable
• Charger and Charger Adapter
• Belt Clip
• Laynard Strap
• Manual Foldout
