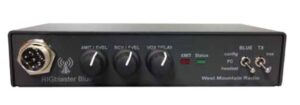

Pairs with a PC, tablet or smartphone to provide a sound device and a rig control serial port.
Digital mode capability on a tablet or smartphone
Pairs with a Bluetooth® headset for receive and transmit!
High gain Bluetooth® antenna provides up to 33′ range
Uses bi-directional audio Bluetooth® protocol (HSP & HFP)
PC configuration software included for maximum flexibility
Compatible With Most Ham Radios
Easily configure the RIGblaster Blue for most radios with pre-wired jumper blocks (ISC)
Seven ISCs included. Covers most Icom, Yaesu, Kenwood, Elecraft & Alinico radios.
Adds Bluetooth® capabilities out-of-the-box to any radio that uses an 8 pin round or RJ-45 modular mic jack.
Optional cables available for 6 pin RJ-25 and 4 pin round mic jacks
Built-in Rig Control
TTL Icom (CI-V)/Yaesu (CAT) interface jack
RS-232C with DB-9 connector provided
Front Panel Audio Controls
XMIT Level allows accurate drive to transmitter
RCV Level adjusts headset volume and waterfall brightness
Audio VOX (with adjustable delay) allows for simple configuration
PTT inhibit for listen only
Red LED provides visual feedback of PTT status
Other Great Features
Easy Bluetooth® operation with 3 position selector: Config, PC & Headset mode.
Bluetooth® pairing status LED
Rear panel RCA PTT jack for use with footswitch or external sequencer
Fully isolated transformer coupled Audio
Isolated PTT (mechanical relay)
Two external speaker jacks for receive and transmitted Audio
Excellent RF/noise immunity
DVD of sound card software collection
