RigExpert AA-1000 – Antenna Analyzer (0.1 to 1000 MHz)

New equipment
1 Comment
Tags: antennas,new equipment,SWR,tools
Date: 04 Feb 2012

Will be available in March 2012

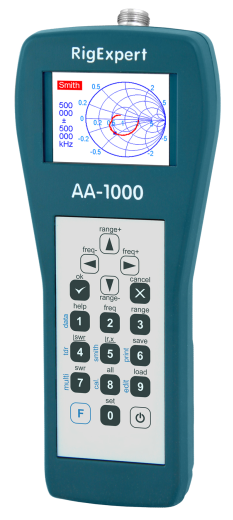

RigExpert AA-1000 is a powerful antenna analyzer designed for testing, checking, tuning or repairing antennas and antenna feedlines.

Easy-to use measurement modes, as well as additional features such as connection to a personal computer make RigExpert AA-1000 attractive for professionals and hobbyists.

The following tasks are easily accomplished by using this analyzer:

Rapid check-out of an antenna

Tuning an antenna to resonance

Antenna SWR and impedance measurement and comparison before and after specific event (rain, hurricane, etc.)

Making coaxial lines or measuring their parameters

Cable testing and fault location

Measuring capacitance or inductance of reactive loads

Analyzer comparison table

Downloads:

Download the RigExpert AA-1000 User’s manual.
Download the RigExpert AA-1000 Software manual.
