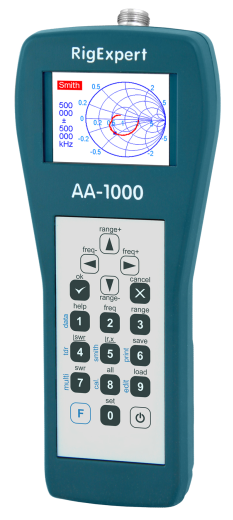

RigExpert AA-600 and AA-1000 are powerful antenna analyzers designed for testing, checking, tuning or repairing antennas and antenna feedlines.

Graphical SWR (Standing Wave Ratio) and impedance, as well as Smith/polar chart displays are key features of these analyzers which significantly reduce the time required to adjust an antenna.

Easy-to use measurement modes, as well as additional features such as connection to a personal computer make RigExpert AA-600 and AA-1000 attractive for professionals and hobbyists.

Both AA-600 and AA-1000 are available in non-US version (with ability to display Smith chart) and US version (displaying a polar chart instead).

The following tasks are easily accomplished by using these analyzers:

  • Rapid check-out of an antenna
  • Tuning an antenna to resonance
  • Antenna SWR and impedance measurement and comparison before and after specific event (rain, hurricane, etc.)
  • Making coaxial lines or measuring their parameters
  • Cable testing and fault location
  • Measuring capacitance or inductance of reactive loads

Analyzer comparison table

See also: A short review of antenna and network analyzers
See also: AA-1000: measurements at higher frequencies

Download the RigExpert AA-600/AA-1000 User’s manual.
Download the RigExpert AA-600/AA-1000 Software manual.
