Rigol’s new DSA815 spectrum analyzer redefines the product category by setting new standards for performance and price. The DSA815 features a unique widescreen display, compact design and easy-to-use interface and operations, making it ideal for benchtop or field apps in RF and wireless testing and production. The new spectrum analyzer offers the ability to measure smaller signals using our digital IF filter, which allows for smaller bandwidth settings and reduces displayed noise levels.

The DSA815 also distinguishes between signals with a frequency difference as little as 100 Hz. The DSA815 includes a wide range of standard functions including AM/FM demodulation and a preamplifier. In addition, Rigol offers great options including an EMI filter and quasi-peak detector kit and a 1.5 GHz tracking generator. So before your next compliance test, check out the DSA815… save one trip to the compliance lab and it pays for itself!

RIGOL's DSA800 series Spectrum Analyzers

Features:

  • 9 kHz to 1.5 GHz Frequency Range
  • Typical -135 dBm Displayed Average Noise Level (DANL)
  • -80 dBc/Hz @10 kHz offset Phase Noise
  • Total Amplitude Uncertainty <1.5 dB
  • 100 Hz Minimum Resolution Bandwidth (RBW)

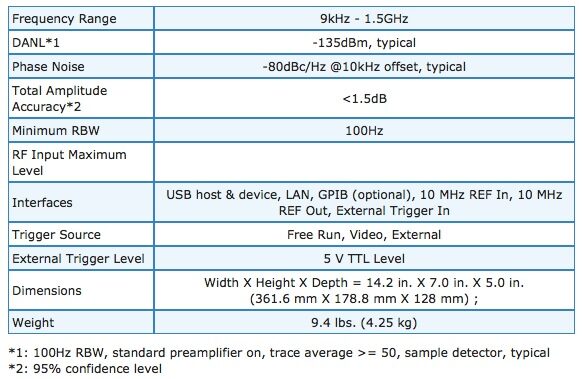

Specifications:



Price: $1495 USD

Link
