Brief description:

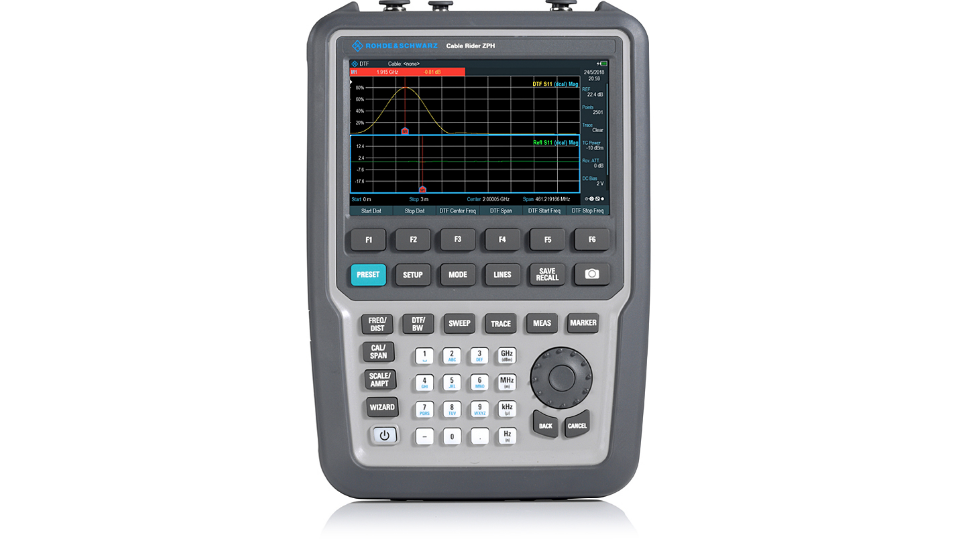

The R&S®Cable Rider ZPH has all the essential basic measurement capabilities required for installing and maintaining antenna systems in the field. Its unique features ensure fast and efficient cable and antenna measurements and spectrum analysis. Two different R&S®ZPH models are available to suit different needs, a pure one-port cable and antenna analyzer and a two-port model with additional spectrum analysis and tracking generator features.

  • Frequency range up to 3 GHz or 4 GHz, upgrade via keycode
  • One-port model features: DTF, return loss, VSWR and cable loss measurements
  • Two-port model additionally features S21 measurements, spectrum and interference analysis, AM/FM/ASK/FSK demodulation
  • Ideal for field use: up to 9-hour battery life, 2.5 kg (5.5 lb), backlit keypad, fast boot time, non-reflective display, small form factor, ruggedized housing (IP51)



With its short boot and warm-up times and fast measurement speed, the R&S®CableRider ZPH gets down to analyzing extremely fast. Measurement setups can be predawn and settings preconfigured. Thanks to the wizard

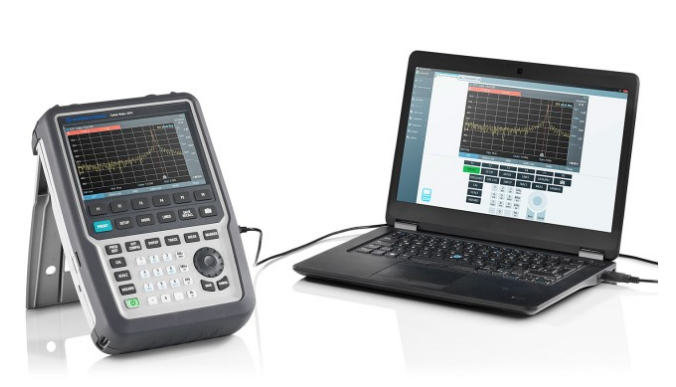

function, fast and accurate measurements are performed in a single step. Generating measurement reports is easy with the R&S®InstrumentView software.

There is no need to calibrate the analyzer before use. It is reliably and accurately calibrated before leaving the factory. Should calibration be needed to eliminate the effects of additional cables or adapters used to connect the analyzer to the device under test (DUT), the R&S®ZN-Z103 automatic calibration unit performs the calibration in just one step.

The battery lasts up to an entire work day on just one charge. The keypad is illuminated to facilitate working in dim environments. The leading-edge capacitive touchscreen of the R&S®CableRider ZPH is changing the way
users interact with an analyzer – simply touch the screen to add markers and change settings. These features and the ergonomic design make the R&S®CableRider ZPH ideal for fast and efficient on-site measurements.
Two different R&S®ZPH models are available to suit different needs, a pure one-port cable and antenna analyzer and a two-port model with additional spectrum analysis and tracking generator features.

Key facts:

Frequency range in cable and antenna analyzer mode
from 2 MHz to 3 GHz or 4 GHz, upgrade via keycode

Frequency range in spectrum analyzer mode from 5 kHz
to 3 GHz or 4 GHz, upgrade via keycode

One-port model features: DTF, return loss, VSWR and
cable loss measurements

Two-port model additionally features:
■ Two-port transmission measurement
■ Spectrum analysis
■ Interference analysis
■ Signal strength mapping
■ Modulation analysis

Ideal for field use: up to 9-hour battery life, 2.5 kg (5.5 lb),
backlit keypad, fast boot time, non-reflective display,
small form factor, ruggedized housing (IP51)

Large color touchscreen

Measurement wizard to speed up measurements and
eliminate human errors

Specifications (PDF File)
Brochure (PDF File)
